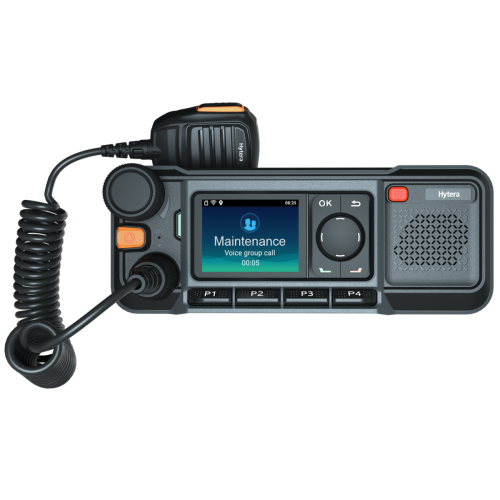

MNC360
PoC Mobile Radio
Push-to-Talk over Cellular Mobile Radio

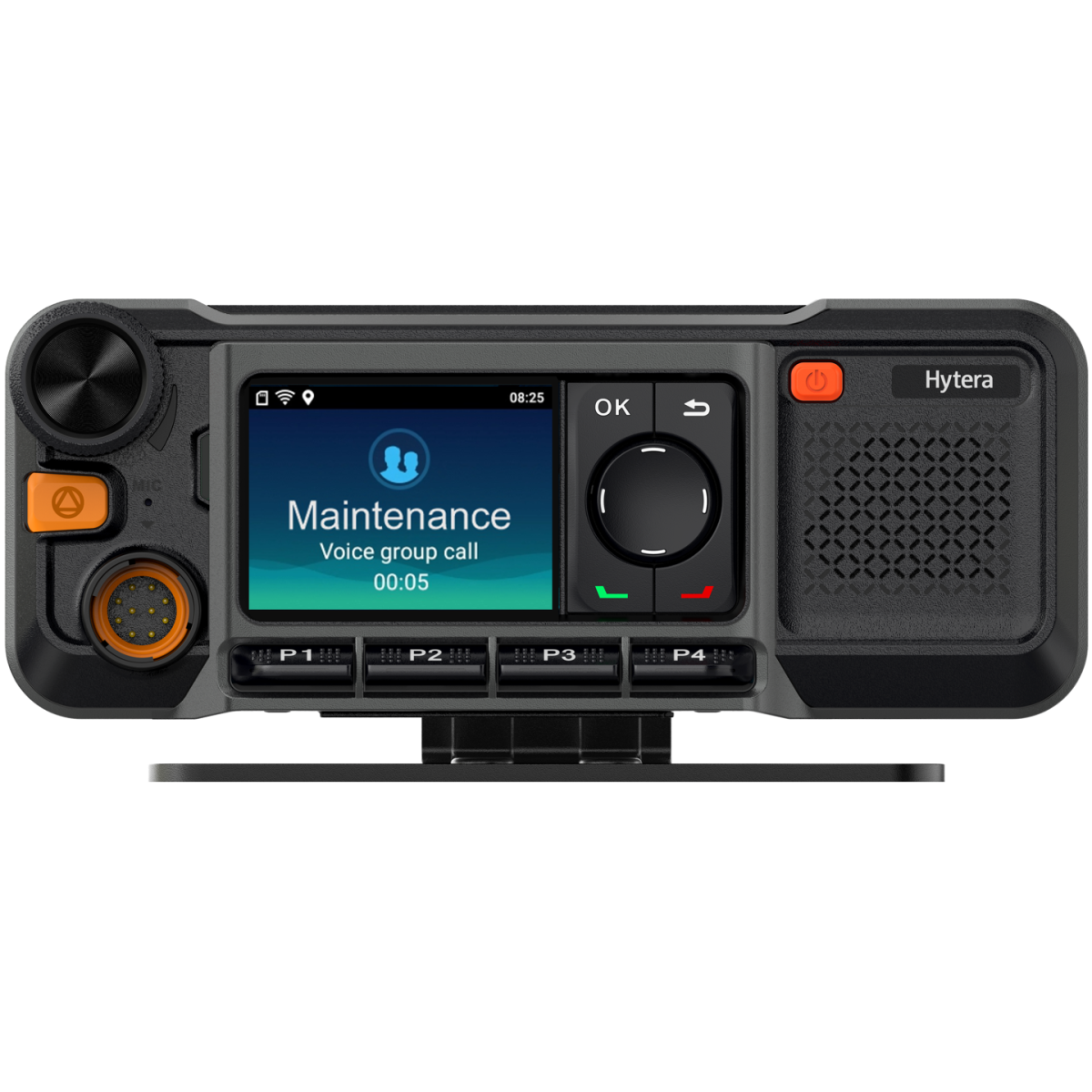

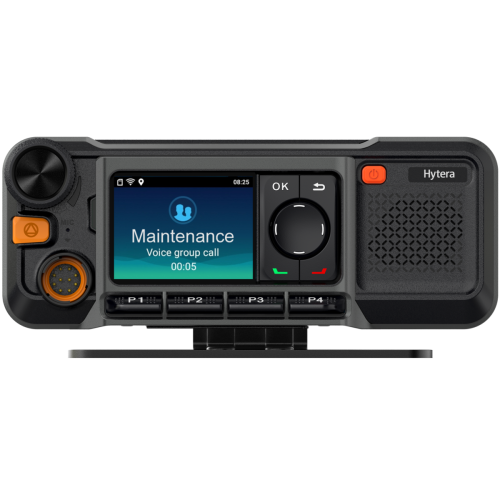

The Hytera MNC360 Push-to-Talk over Cellular (PoC) mobile radios are professional-grade communications devices that provide clear push-to-talk communication, instant group calling, and location tracking for reliable and efficient fleet dispatching.
Unlike cell-phones, tablets, and handheld devices, the MNC360 is a legal and DOT compliant device for safe communications while driving.
- Nationwide Coverage with 4G/LTE Networks
- Industry Leading Voice Quality with Digital Noise Suppression
- Supports Instant Group and Individual Calling
- Compact and Rugged Radios that are Easy to Use
- GPS Location Tracking for the Web-based Dispatching App
The MNC360 enables Push-to-Talk over Cellular communications using existing 4G/5G/LTE Mobile Network Operator infrastructure and Wi-Fi networks. The MNC360 is supported on the HORIZON and Hytera HALO Nationwide PoC subscription platforms, and on the HORIZON Dispatch and Hytera HALO Dispatch web-based group communications and fleet tracking applications.
Functions
NATIONWIDE COVERAGE
Cellular SIM card enables mobile network access for nationwide coverage with cellular 4G/LTE connectivity, and dual LTE paddle antennas improve RX sensitivity by 3dB for excellent reception in weak signal areas.
INDUSTRY LEADING AUDIO QUALITY
The MNC360 features digital noise cancellation technology, distortion and howling suppression, and an exclusive patented acoustic speaker cavity and forward facing 4-Watt high-volume speaker to deliver excellent voice quality in loud environments.
COMPACT AND EASY TO INSTALL

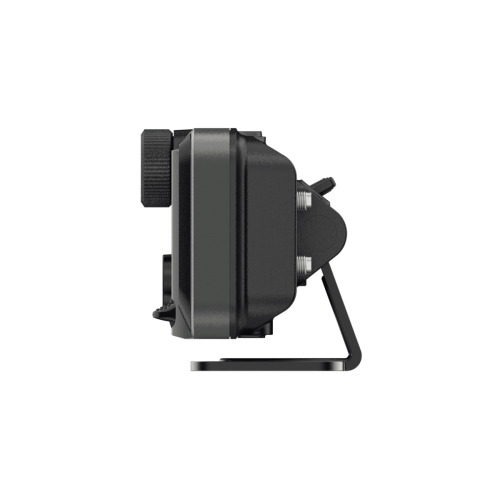

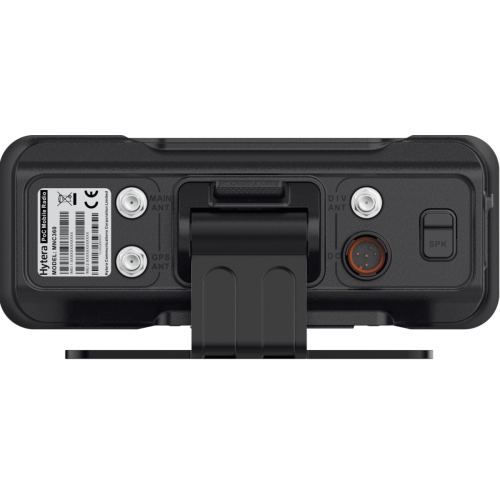

Weighing only 10.6 ounces, the MNC360 is compact for flexible installations, and a rotating mounting bracket enables attaching the MNC360 on top of the dashboard or on a vertical surface in the vehicle. The MNC360 features highly sensitive, dual LTE antennas to reduce the need to install an external antenna (depending on where the MNC360 is installed inside the vehicle).
CLEAR AND BRIGHT DISPLAY
The LCD display screen is easily visible even in bright sunlight.
ANDROID OPERATING SYSTEM
The MNC360 is powered by the Android mobile platform.
FLEXIBLE INTEGRATION
With the standard API and SDK, the MNC360 communications capabilities can be integrated into mobile fleet management and telematics applications.
INSTANT GROUP AND INDIVIDUAL CALLING

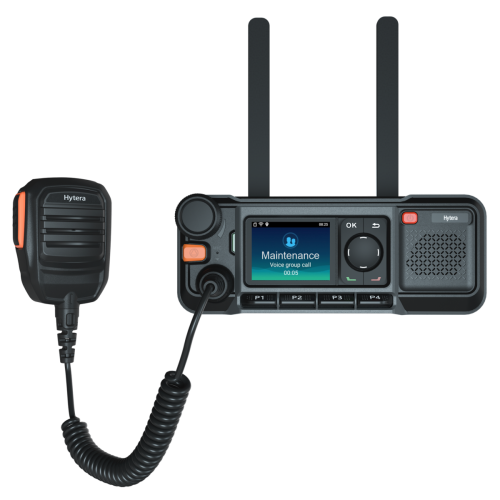

Push-to-Talk button on the handheld microphone initiates voice calls to groups or individuals, and the Hytera Dispatch web-based communications and location tracking application supports instant group calling to the MNC360 and other PoC devices.
GPS POSITIONING
Highly accurate external GPS antenna enables speed monitoring and real-time location tracking with breadcrumbs and geofencing with the Hytera Dispatch application.
DESIGNED FOR SAFETY
Eyes stay on the road with raised tactile buttons, piano style keys, and lightweight handheld microphone for safe and simple push-to-call operation. The MNC360 features speeding and driver fatigue notifications, and an emergency call button for instant one-touch emergency calls to dispatcher and other PoC devices.
BUILT-IN WI-FI
Built-in Wi-Fi for flexible network access and using the MNC380 as a dispatch console.
RICH WITH ACCESSORIES
The MNC360 features a 3.5mm audio jack for wired earpiece accessories, a Micro USB 2.0 port for connecting and powering a variety of external devices, built-in Bluetooth for hands-free microphones and other wireless accessories, and a 2-pin port for an external loudspeaker.
The MNC360 enables cost-effective fleet communications and dispatching with fast and easy deployments.
4G/LTE cellular networks provide reliable nationwide coverage that requires no investment in traditional radio network infrastructure or FCC frequency licensing.
The MNC360 delivers instant nationwide group and individual calling right out of the box.
MNC360 – Standard Accessories

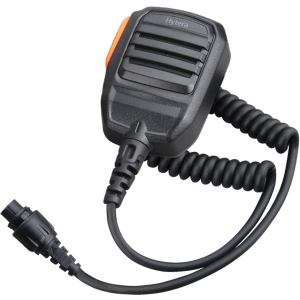

SM16A1

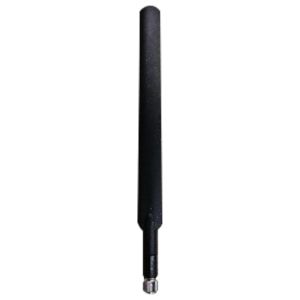

AN1700W01

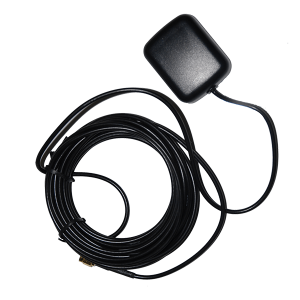

GPS04

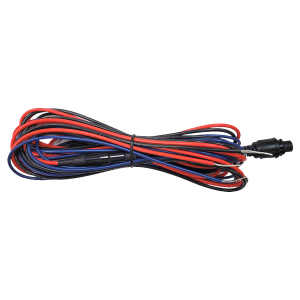

PWC34

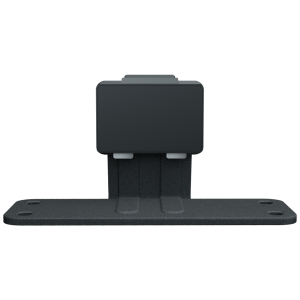

BRK33
MNC360 – Optional Accessories
EHW08
SM27W2

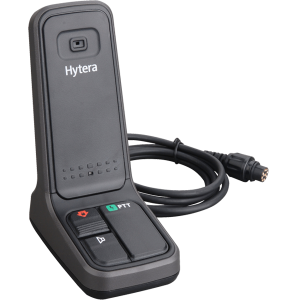

SM10A1
SM09C1

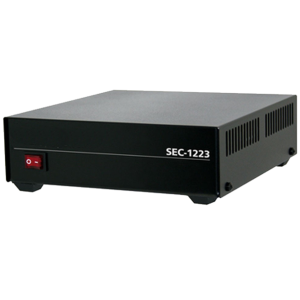

SEC1223
Technical Specifications
General
| Weight | 10.6oz (300g) |
| Dimensions | (H x W x D) 6 5/8” x 2 5/8” x 1 1/2” (170 x 66 x 39mm) |
| Display | 2” LCD 320×240 |
| Operating System | Android 7.1 |
| RAM Capacity | 1 GB |
| ROM Capacity | 8 GB |
| Input Voltage | 9-15V DC |
| Speaker | 4W |
| Operating Temperature | -22°F to +167°F (-30°C to +75°C) |
| Port Interfaces | Two LTE antenna ports, 2-pin external speaker port, GPS antenna port, MicroUSB 2.0 connector, 3.5mm audio accessory port, secure10-pin aviation port for handheld mic, power connector |
| Card Slots | Two Micro-SIM slots, TF Card slot (up to 128 GB) |
Environmental
| Operating Temperature | -4° to +140° F (-20° to +60° C) |
| Storage Temperature | -40° to +185° F (-40° to +85° C) |
| ESD | IEC 61000-4-2, (ESD) ± 12 kV (air); ± 8 kV (contact) |
| IP Rating | IP54 for water and dust resistance |
Standards and Frequencies
| LTE Frequency Bands | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 – TDD-LTE: B38/B39/B40/B41 (2496–2690 MHz) GSM: 850/900/1800/1900 – WCDMA B1/B2/B3/B4/B5/B8 |
| Wi-Fi | 2.4GHz 802.11b/g/n |
| Bluetooth | BT 4.2 |
| Positioning System | GPS (A-GPS)/BDS |
| Certifications | FCC/CE/IC |
