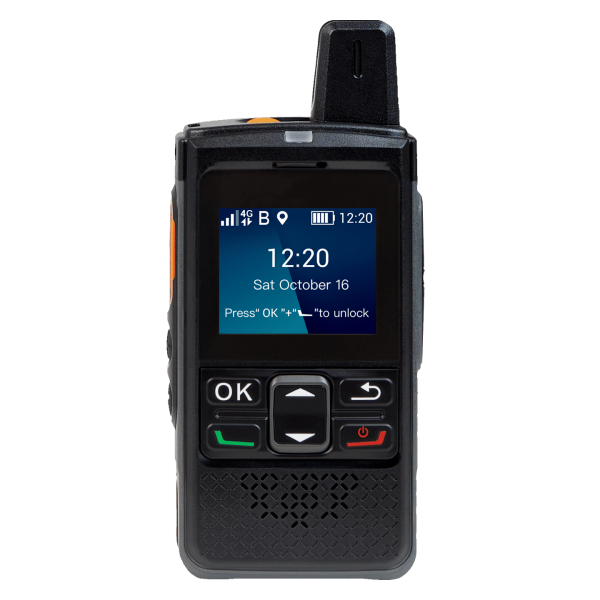

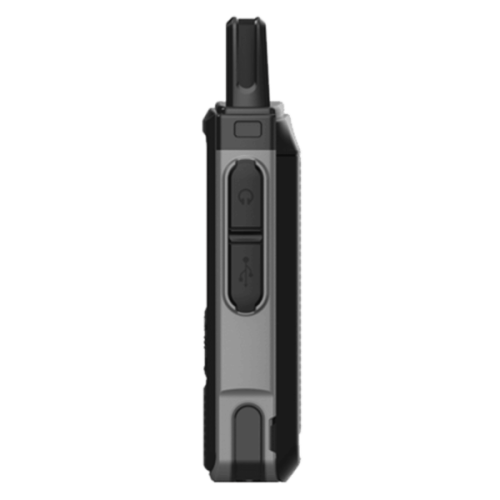

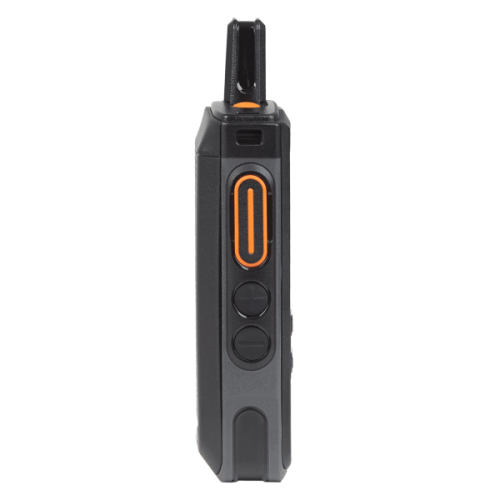

PNC360S
PoC Radio
Ultra-Compact Push-to-Talk Over Cellular Radio
The PNC360S is an ultra-compact, rugged, and easy-to-operate push-to-talk radio that enables connectivity over 4G/LTE and Wi-Fi for wide-area radio communications. It is cost-effective, and surprisingly feature rich for the price. The compact size enables one-hand operation, and the PNC360 can be carried in pocket, worn on the standard belt clip, or worn on a lanyard. The PNC360S PoC radio is supported on Hytera Dispatch and can be deployed very quickly to deliver these features at a lower cost than traditional radio systems. The PNC360S enables Push-to-Talk over Cellular communications using existing 4G/5G/LTE Mobile Network Operator infrastructure and Wi-Fi networks. The PNC360S is supported on the HORIZON and Hytera HALO Nationwide PoC subscription platforms, and on the HORIZON Dispatch and Hytera HALO Dispatch web-based group communications and fleet tracking applications.
Functions
NATIONWIDE COVERAGE
National workforce communication with mobile 4G/LTE connectivity supported by the Micro-SIM.
BUILT-IN WI-FI
Built-in Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range.
BUILT-IN BLUETOOTH
Built-in Bluetooth enables connectivity to earpieces, Push-to-Talk rings, and other wireless accessories.
RELIABLE AND DURABLE
Compliant with MIL-STD-810-G for shock and vibration, and IP67 rated for water submersion and dust resistance. Anti-magnetic speaker keeps metal fragments from damaging the speaker.
TEXT MESSAGING
Receive and view text messages sent from dispatcher and other Hytera PoC devices.
STUN AND REVIVE
Dispatcher can remotely stun (disable) or revive (return to service) if the radio is lost or stolen
HIGH-QUALITY AUDIO
Digital noise suppression and high-volume speakers for excellent voice quality in loud environments. Provides high-quality digital audio performance for individual calls, group calls, and emergency calls.
GPS POSITIONING
GPS enables real-time tracking and positioning for the Hytera Dispatch application.
TFT LCD DISPLAY
The LCD display provides high-resolution visibility even under bright daylight. Supports an easy-to-use GUI menu system with clean and simple navigation.
LONG-LIFE BATTERY
Powerful 4000mAh Lithium Polymer battery delivers several days of operation on a single charge, and supports fast charging. Rated for over 48 hours 10/10/80 operation (10% transmitting, 10% receiving, 80% idle).
PRE-INSTALLED APPS
Android apps provide convenient PoC services
EMERGENCY ALARMS AND CALLING
Emergency Alarms can be sent to other radios via the one touch programmable button to improve worker safety and emergency response time
PNC360S – Standard Accessories

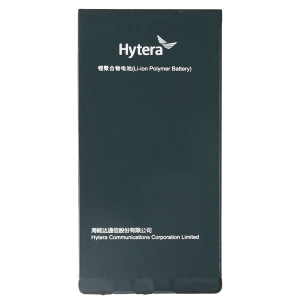

BP4008
PS2023
PC143

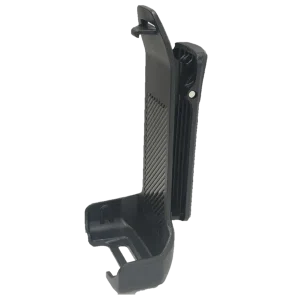

BC66

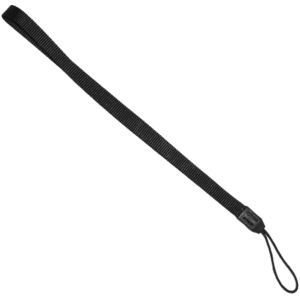

RO03
PNC360S – Optional Accessories

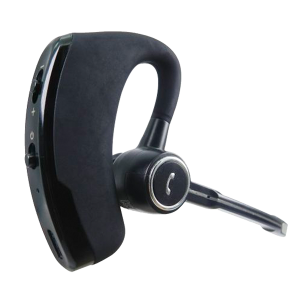

EHW08
POA121
SM27W2
Technical Specifications
Standards and Frequencies
| LTE | FDD-LTE：B2/B3/B4/B5/B7/B12/B13/B17/B26/B28 TDD-LTE：B38/B41 WCDMA：B2/B4/B5 GSM：850/900/1800/1900 |
| Wi-Fi | 2.4GHz 802.11b/g/n |
| Bluetooth | BT 4.2 |
| Positioning System | GPS/Galileo/AGPS |
Environmental
| Operating Temperature | -4°F to +140°F (-20°C to +60°C) |
| Storage Temperature | -22°F to +158°F (-30°C to +70°C) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±12kV Air |
| Dust and Water Ingress | IP67 Standard |
| Humidity | MIL-STD-810 H Certified |
| Shock and Vibration | Per MIL-STD-810 H Certified. Drop Proof to 1.2 meters |
General
| Battery | 4000mAh Lithium Polymer |
| Battery Life (10/10/80) | Up to 48 Hours |
| Weight | 6.7oz (190g) Including Belt Clip |
| Dimensions (H x W x D) | 4 3/32” x 2 3/16” x 1 1/16”(104 x 55 x 27mm) |
| Operating System | Android 7.0 |
| Memory | 1GB RAM + 8GB ROM |
| Card Slot | Nano-SIM |
| Display | 1 3/4” TFT LCD Non-touch screen display, 160×128 |
| Speaker Power | 2W (rated), 3W (max) |
| External Interface Ports | USB Type C Charging Port, 3.5mm Audio Interface |
| Positioning | GPS/Galileo/AGPS |
