Compact Commercial DMR Two-Way Digital Radio with LCD Display

The Hytera PD362i open-standard DMR radio delivers clear two-way voice and text in a small pocket-sized design. This is the ideal solution for small to medium-sized organizations looking for cost-efective and high-quality radio communications.

Functions

icon-Ergonomic

ERGONOMIC AND LIGHT WEIGHT

Tactile buttons for no-look PTT and emergency calling. Compact antenna makes the PD362i feel like a cellular phone. Pocket-size design that weighs less than 6 ounces

icon-Audio_Digital_Modes

ANALOG OR DIGITAL OPERATION

Supports both analog and digital modes. Allows switching between the two operation modes for communication with analog radios

icon-Reliable_Operation

RELIABLE AND DURABLE

Compliant with MIL-STD-810-G for shock and vibration. IP54 rated for water and dust resistance

icon-Battery

LONG-LIFE BATTERY

Powerful 2000mAh Lithium Ion batteries deliver up to 12 hours of operation in digital mode and 10 in analog mode

DMR signaling enables group call, private call, and all call transmitting with PTT ID. Supports DMR Tier II repeaters to extend coverage.

icon-Emergency_Calling

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.

icon-Audio_Quality

HIGH QUALITY AUDIO

Audio equalizer adjusts low, mid, and high frequency gain

icon-Audio_Digital_Auto_Detect

ANALOG AND DIGITAL AUTO DETECT

Detects the signal type and automatically switches between analog and digital mode

icon-Emergency_Calling

LED DISPLAY

LED display allows good visibility even under bright daylight. Two-line display for messaging with up to 64 characters

icon-Anti_Interferrence

ANTI-INTERFERENCE

Digital encoding and error correcting reduces signal interference on the same frequency..

icon-GPS

ROAMING

This feature enables the radio to switch between sites, ensuring seamless communication.

icon-Texting

QUICK TEXT MESSAGES

One-touch sending of pre-programmed text messages. Up to 10 pre-programmed via CPS

icon-Pseudo_Trunking

PSEUDO TRUNK

This virtual trunking feature automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency

UPGRADE FEATURES (Optional)

icon-Encryption

ENCRYPTION

For secure audio and data

icon-Emergency_Calling

PRIORITY INTERRUPT

Priority Interrupt allows dispatcher to interrupt existing calls with important emergency information

icon-Stun_and_Revive

STUN/REVIVE

Enables dispatch and other users to disable/enable a radio if it is stolen, lost, or used maliciously

PD362i – Standard Accessories

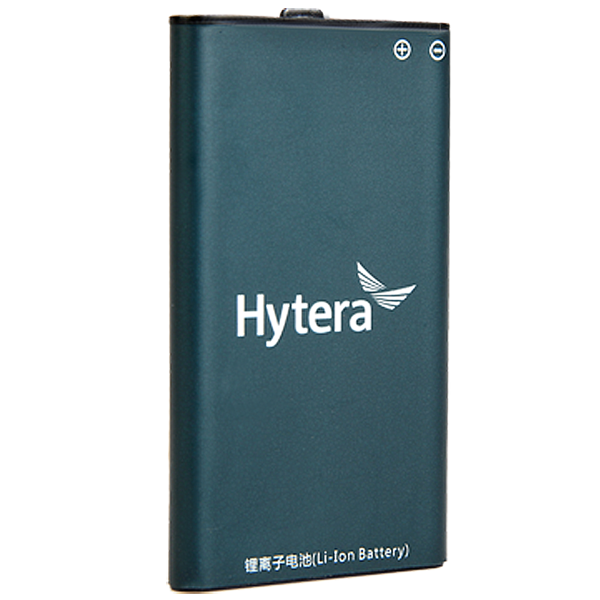

BL2009

PS1030

Power adapter (Micro USB) for PD3 series enables hassle free charging via PC or laptop

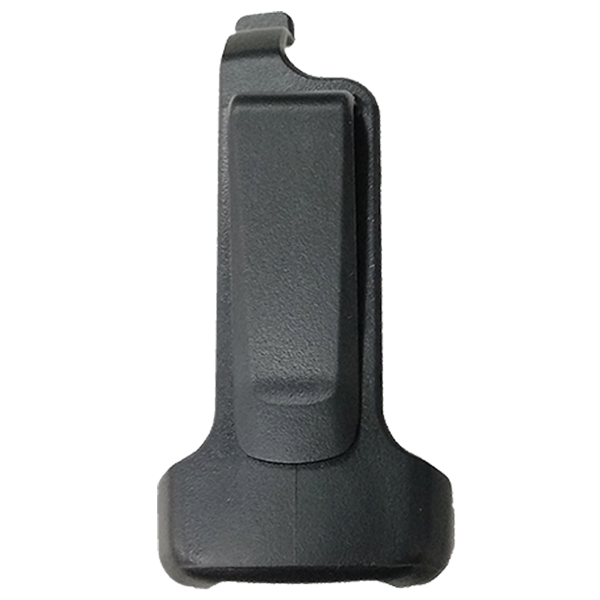

BC29

Plastic belt clip securing the radio for safety and convenience, for use with PD362i wireless charger kit (POA113)

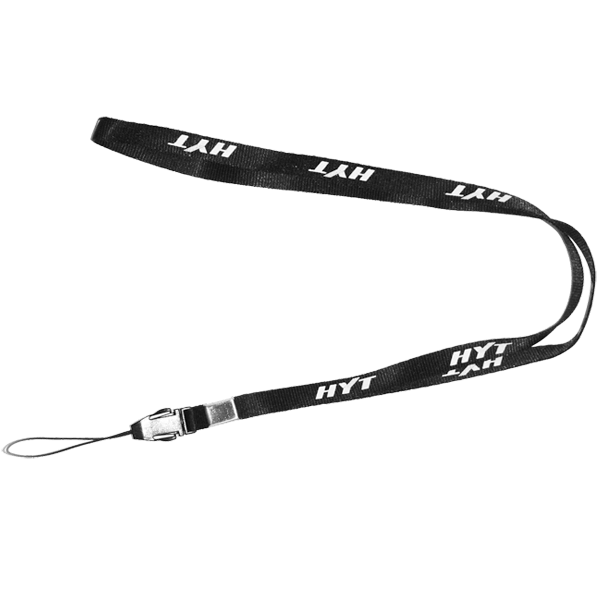

RO01

Nylon Wrist Strap

PD362i – Optional Accessories

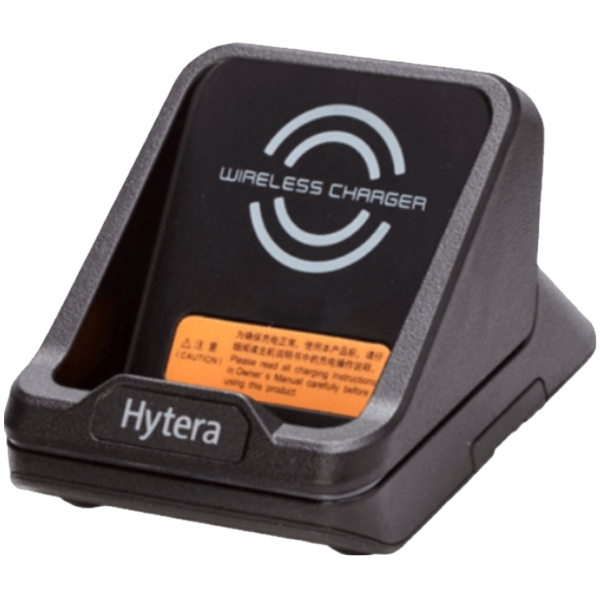

CH20L05

Wireless lithium-ion battery charger for PD362i

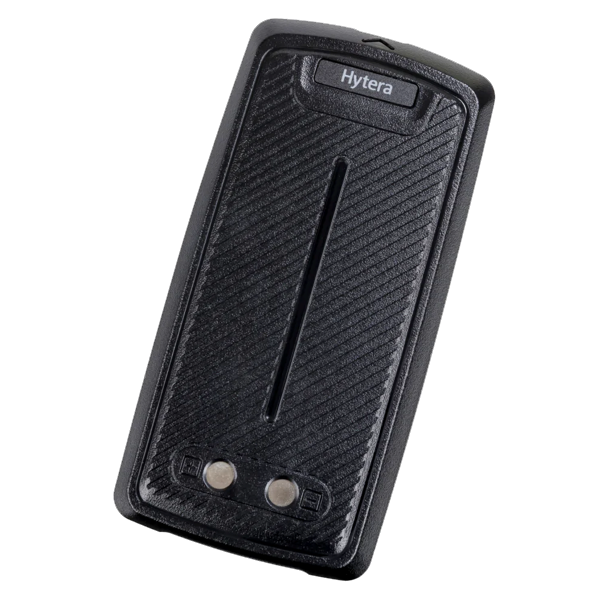

POA129

PD362i contact-charge battery cover (compliant with CH10L24)

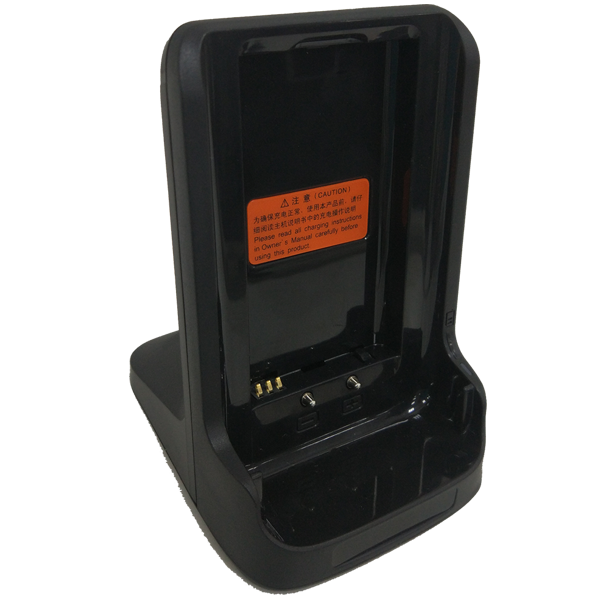

CH10L24

Desktop Charger for PD36Xi, micro USB port, dual pocket design, supporting battery and radio charge simultaneously (used with POA129) without adapter

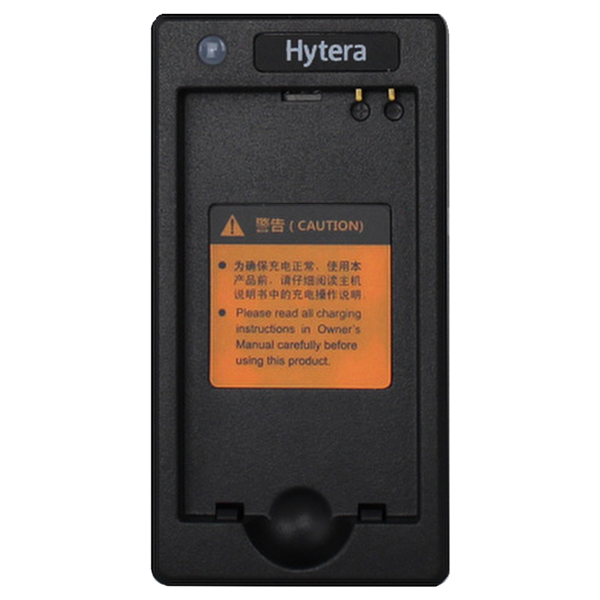

CH10L20

Rapid-rate charger (without adapter) designed to charge lithium-ion batteries from the PD3i series

PS6001

Six-unit Switching Power adapter

PC69

Programming cable for portable radios in PD3i series

Technical Specifications

Frequency RangeUHF: 400-440MHz UHF: 430-470MHz
Channel Capacity 256 (16 zones with 16 channels per zone)
Zone Capacity16 Zones with 16 Channels per Zone
Channel Spacing25/12.5KHz
Operational Voltage3.7 V
Battery2000mAh (Li-Ion)
Battery Life (5/5/90)12 hours Digital, 10 hours Analog
Weight5.64oz (160g)
Dimensions (H x W x D)4 3/16” x 2 11/16” x 29/32” (106 x 55 x 23mm)
Frequency Stability± 0.5ppm
Antenna Impedance50Ω
Digital Sensitivity0.22μV / BER 5%
Analog Sensitivity0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD)
Adjacent SelectivityTIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz
IntermodulationTIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz
Spurious Response RejectionTIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz
Hum and Noise40dB @ 12.5kHz, 43db @ 20kHz, 45dB @ 25kHz
Rated Audio Power Output0.4W
Rated Audio Distortion≤3%
Audio Response+1 to -3dB
Conducted Spurious Emission<-57dBm
RF Power OutputUHF 1.5W – 3W
FM Modulation11K0F3E @ 12.5KHz 16K0F3E @ 25KHz
4FSK Digital Modulation12.5 kHz (data only): 7K60FXD 12.5 kHz (voice & data): 7K60FXW
Conducted/Radiated Emission-36 dBm 1 GHz
Modulation Limiting±2.5 kHz at 12.5 kHz ±5.0 kHz at 25 kHz
FM Hum and Noise40dB @ 12.5kHz, 45dB @ 25kHz
Adjacent Channel Power60dB @ 12.5kHz, 70dB @ 25kHz
Audio Response+1 to -3dB
Audio Distortion≤3%
Digital Vocoder TypeAMBE+2TM
Digital ProtocolETSI-TS102 361-1,-2,-3
Operating Temperature-22oF to +140oF (-30oC to +60oC)
Storage Temperature-40oF to +185oF (-40oC to +85oC)
ESDIEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air
Dust and Water IngressIP54 Standard
HumidityPer MIL-STD-810 C/D/E/F/G Standard
Shock and VibrationPer MIL-STD-810 C/D/E/F/G Standard
