BD302i DMR Two-Way Radio
Compact Entry-Level DMR Two-Way Radio
Compact and lightweight BD302i Series radios provide cost-effective and easy-to-use radio communications with excellent performance.
The Hytera BD302i is an entry-level, grab-and-go digital radio that requires minimal training for users. The BD30i supports the 400 to 470MHz UHF frequency range with 48 Channels and 3 Zones (16 Channels per Zone). The BD302i has 2W of output power, which provides a suitable range for small and medium workplaces like retail, hospitality, and single-site school campuses. Weighing only 5 ounces, the lightweight and compact design makes the BD302i easy to carry and operate for long shifts.
Functions
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calling.
HIGH QUALITY AUDIO
DMR digital technology provides excellent audio quality for reliable communication
ANTI-INTERFERENCE
Automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency.
VOX
Voice activated microphone enables hands free operation. Also supported on external earpiece and microphone accessories.
LONG-LIFE BATTERY
Powerful 2200mAh Lithium Ion batteries enable up to 16 hours of operation in digital mode and 12 hours in analog
RELIABLE AND DURABLE
Compliant with MIL-STD-810-G for shock and vibration. IP54 rated for water and dust resistance.
ANALOG OR DIGITAL OPERATION
The BD302i operates in analog or digital mode. Allows switching between the two modes for communication with analog radios.
EXTENDED TALK RANGE
Hytera’s innovative receiving technology extends talk range
DMR
DMR signaling enables group call, private call, and all call transmitting with PTT ID. Supports DMR Tier II repeaters to extend coverage.
AUDIO CHANNEL ANNOUNCEMENT
Voice announcement of channel number for quick and accurate channel switching, even in low visibility.
SCANNING
Allows listening to communication activities on other channels.
EMERGENCY CALLING
One-touch Emergency Alarms can be sent to other radios with the programmable button. Improves worker safety and emergency response time.
BD302 – Standard Accessories
AN0435H19
UHF R connector, 400-470MHz, 9cm
PS1030
Power adapter (Micro USB) for PD3 series

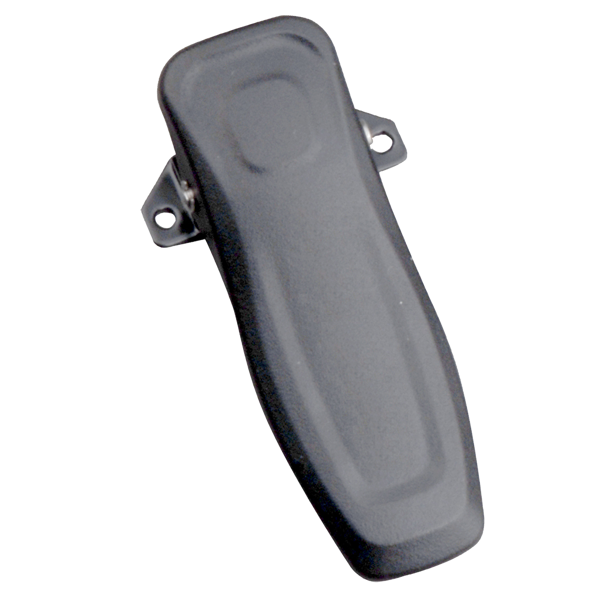

BC16
Plastic belt clip with a spring and metal bracket
RO03
Nylon Wrist Strap
BD302 – Optional Accessories

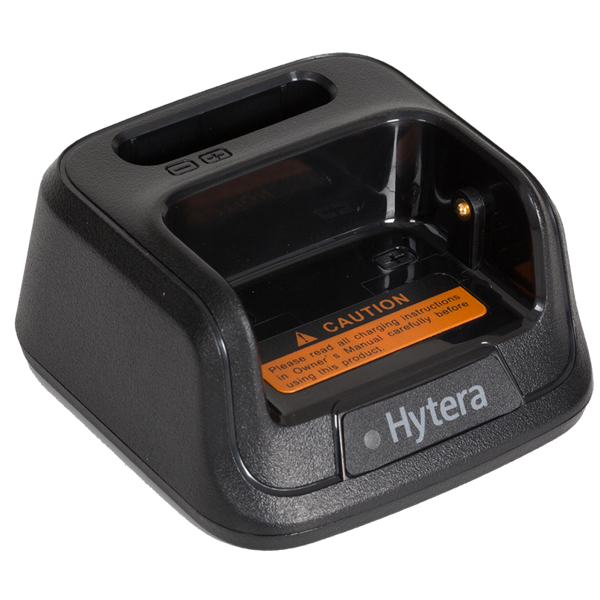

CH10L22
Standard Drop-In Single Unit Charger, dual pocket design.

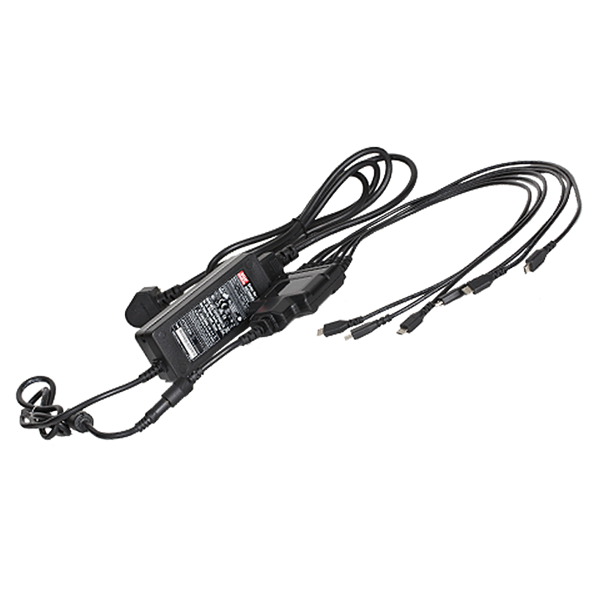

PS6001
Six-unit Switching Power adapter

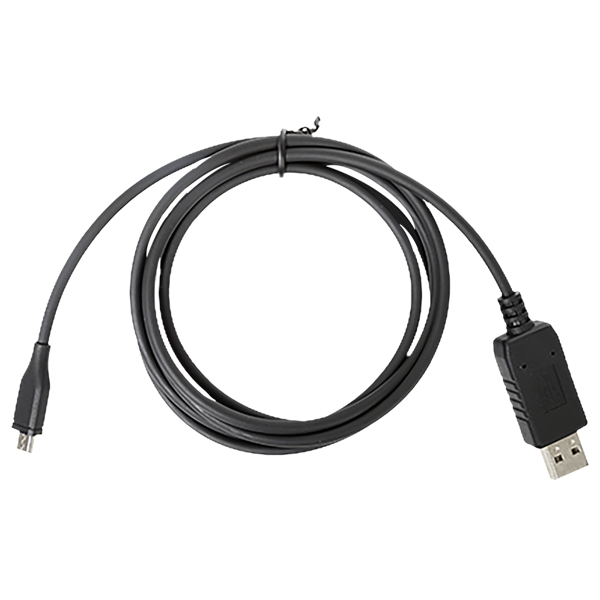

PC69
Programming cable for portable radios in PD3i series
Technical Specifications
General
| Frequency Range | UHF 400-470MHz |
| Channel Capacity | 148 Channels (24 Analog, 24 Digital) |
| Zone Capacity | 3 Zones with 16 Channels per Zone |
| Channel Spacing | 25/12.5kHz |
| Operational Voltage | 3.8W |
| Battery | 2200mAh (Li-Ion) |
| Battery Life (5/5/90) | 16 hours Digital, 12 hours Analog |
| Weight | 5 ounces (140g) |
| Dimensions (H x W x D) | 3 31/32” x 1 15/16” x 1 1/32” (101 x 49 x 26mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
Receiver
| Digital Sensitivity | 0.22µV (BER 5%) |
| Analog Sensitivity | 0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) |
| Adjacent Selectivity | TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz |
| Spurious Response Rejection | TIA-603: 70dB @ 12.5/25kHz |
| Intermodulation | TIA-603: 65dB @ 12.5/25kHz |
| Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤5% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
Transmitter
| RF Power Output | UHF High Power: 2W UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤5% |
| Digital Vocoder Type | AMBE++ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Enviromental
| Operating Temperature | -22oF to +140oF (-30oC to +60oC) |
| Storage Temperature | -40oF to +185oF (-40oC to +85oC) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP54 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
