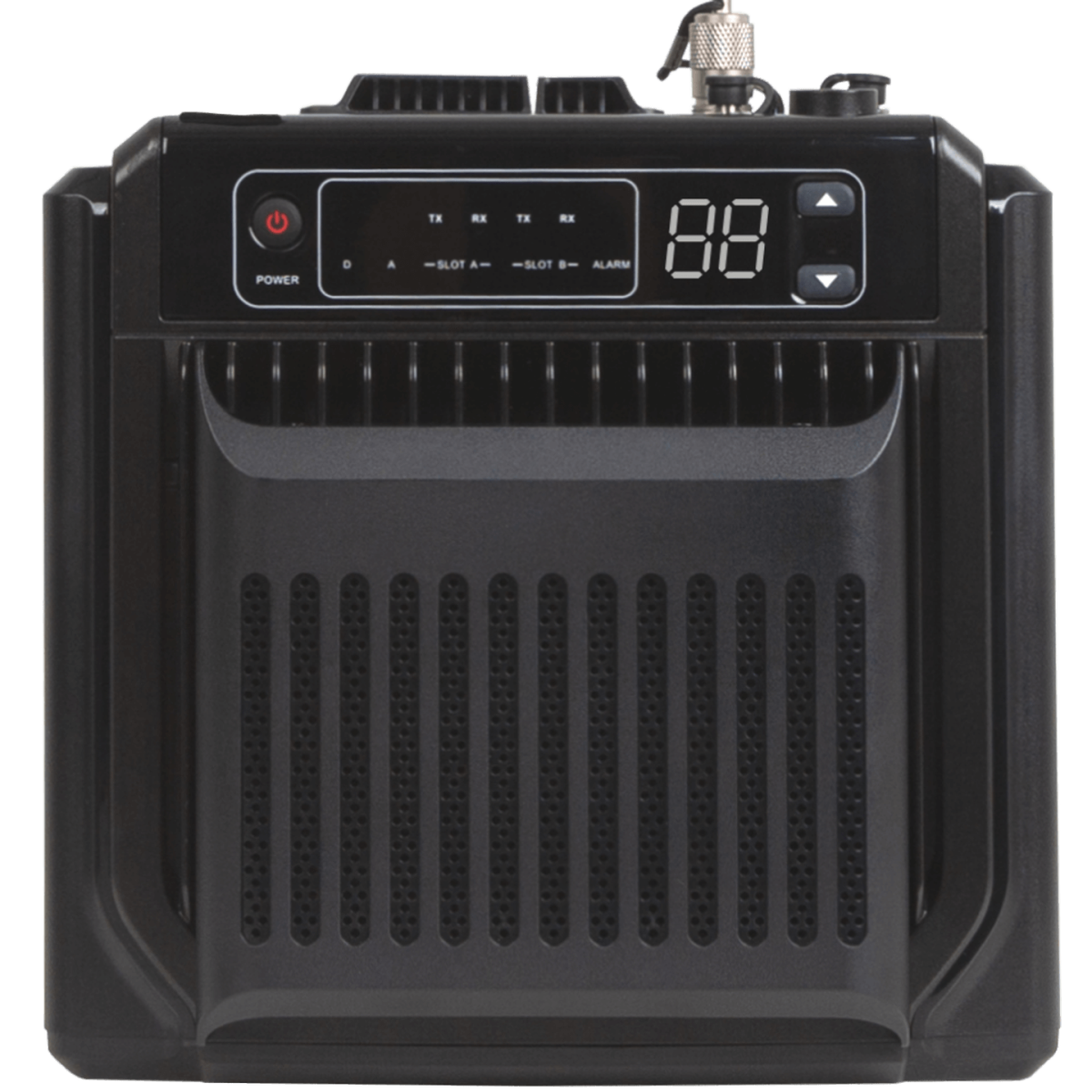

Ultra-Compact Form Factor Farther Coverage

Weighing only 4 pounds, 6 ounces and measuring less than 7” tall (without the optional battery) the HR652 delivers unprecedented performance in a compact form factor. It can be deployed in portable applications or be installed on any at surface in areas with limited wall space.

ANALOG & DIGITAL AUTO SWITCH

The HR652 can operate in analog mode, DMR mode, or dynamic mixed digital/analog mode, which automatically switches between analog and digital calls, and provides an ideal solution for smooth analog to digital migration with minimal investment.

RELIABLE OPERATION

The HR652 is built to perform in harsh environments with MIL-STD-810H compliance for ruggedness and impact resistance, and IP54 rated for dust and water intrusion. The HR652 can be configured for 25W high power transmission or variable Wattage low power transmission for localized coverage and preventing interference

HIGHER SECURITY

The HR652 supports Digital End-to-End and Overthe-Air Encryption with optional ARC4 and AES advanced encryption algorithms.

IP Connect (License Required)

IP Connect enables linking multiple HR652 repeaters via Ethernet LAN/WAN networks, third-party IP networks, VPNs, and microwave.  It provides cost-effective and flexible way to expand coverage to multiple locations, or to provide supplemental coverage for a campus, or large building to ensure radio network coverage throughout the entire facility. IP-Connect also provides cross-connect functionality to link radios using different UHF/VHF frequency bands.

Farther Coverage

The HR652 features industry-leading RX sensitivity and 25 Watts output power, increasing the effective communication range for DMR radios throughout a campus, or on each oor of a high-rise building. It covers more area than other compact repeaters, delivering cost-effective coverage for the entire facility. The HR652 also functions as a Single Frequency Repeater that uses both DMR timeslots to receive and forward calls over a single frequency in Direct Mode.

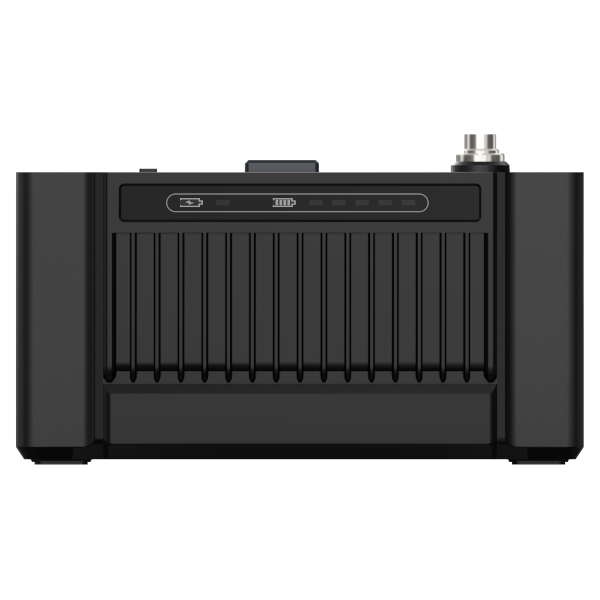

Optional Battery Power

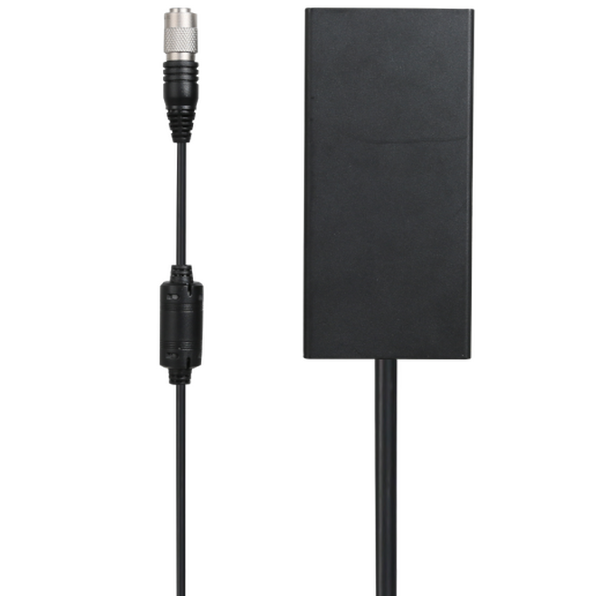

The HR652 features an optional battery for portable applications and for battery backup in xed indoor installations in the event of a power outage. The 12.5Ah large-capacity battery can provide up to 4 hours at 25W. Fast charging technology enables the battery to be fully charged in just 3.5 hours with the optional AC/DC power adapter 100W fast charger.

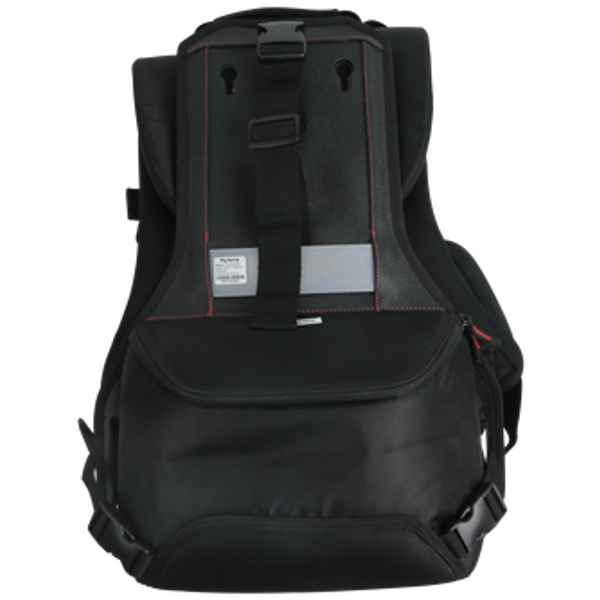

Portable

The HR652 can be equipped with the optional battery, dedicated antenna, GPS, and a light backpack for mobile search and rescue operations. It can also be deployed in vehicles for mobile coverage and powered by the vehicle battery. The HR652 can be turned on and used immediately upon arriving at the site. The ultra-light design can also be used with drones to achieve a wider range of signal coverage

Flexible Interconnection

The HR652 repeater is designed as an intelligent and seamless communication platform with the flexibility to connect with a variety of systems, including SIP and VoIP Phones, dispatching systems, DMR Tier II, and IP Connect Systems.
