H-Series mid-tier Professional DMR Mobile Radios with LCD Display, and Optional GPS and Bluetooth

The Hytera HM682 H-Series DMR mobile radios are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios. The HM682 is the new state-of-the-art in digital mobile radio communications, providing a more efficient experience with loud and clear audio, intuitive user interface, and extended range. The Hytera HM682 is the next generation of mid-tier professional DMR mobile two-way radios designed to provide reliable voice and data communications for remote workers in vehicles and fleet operations.

  • Compact, lightweight, and easy to install
  • Simple operation with tactile keys and LCD screen
  • AI-based noise cancellation for industry-leading audio quality in loud vehicles
  • High RX sensitivity ensures reliable communication

The HM682 H-Series mobile radios empower mobile and fleet employees with efficient and reliable communications.

Functions

LOUDER AND CLEARER AUDIO

Industry-leading audio quality through AI-based voice enhancement with deep learning ability that can accurately extract voice from background noise in real time. The howling suppression prevents feedback between two radios in the same vehicle, ensuring clear and uninterrupted communication on the move.

MULTI-SYSTEM FLEXIBILITY

The HM682 mobile radios can be deployed in Analog and Digital Conventional, DMR Tier II, and optional Hytera XPT Trunking (multi-site with license), and support Roaming between repeater sites.

GREATER CALLING FLEXIBILITY

Supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), and All Call (broadcast call to all radios, transmit only).

IMPROVED WORKER SAFETY

The HM682 is designed for worker safety with an easy access emergency call button. Lone Worker prompts the user to press a key at preset intervals to indicate they are safe. Optional Priority Interrupt (with license) allows a dispatcher to interrupt existing calls with important emergency information, and a dispatcher can remotely enable and disable radios.

ANALOG OR DIGITAL MODE

The HM682 radios can operate in either analog or digital mode, which is the ideal solution for migrating from analog to digital with minimal disruption and investment.

CLARITY TRANSMISSION

Provides a wireless data path between remote network devices and a central network management station. HM682 mobile radios function as compact gateway devices and provide wireless channels that transparently transmit data without modification, and can be deployed in a variety of monitoring and control processes.

DURABLE AND RUGGED

IP54 compliant for water and dust ingress, and MIL-STD- 810 G for shock and humidity. The 10pinaviation connector for the handheld microphone is tight and secure, and coil cable has excellent stretching ability for long service life.

ENHANCED GPS LOCATION TRACKING

HM682 models that support GPS report current location information to other radios, the dispatcher, or third-party applications in real time, enhancing the efficiency of visualized dispatch applications. GPS data is transmitted during voice calls for immediate location targeting, and GPS data is compressed to increase channel capacity and reduce hardware cost.

GREATER RANGE

With high RX sensitivity, the HM682 delivers clear and dependable communication even in areas where the signal is unstable or weak.

HIGHER SECURITY

Supports Digital End-to-End Encryption for voice and data. Optional advanced AES 2456 bit encryption is also available (optional with a license).

FRONT PANEL CONTROLS AND LCD DISPLAY

The front panel features tactile buttons and piano keys for easy operation, and the LCD display is readable even in the dark or direct sunlight.

BUILT-IN BLUETOOTH

HM682 models that feature Bluetooth support audio handset accessories to improve safety and productivity during in-vehicle communications

BACK-TO-BACK

The HM682 can be deployed Back-to-Back with an accessory cable to enable communication between analog and digital radios, or radios with different frequencies.

HM682 – Standard Accessories

SM16A1

IP54 compliant portable microphone with 10-pin aviation connector to be used with mobile radios

PWC10

10ft (3M) DC power cable for mobile radios

BRK44

Mounting Bracket for HM6

HM682 – Optional Accessories

SM09D1

External Speaker (15W) with DB26 pin audio port

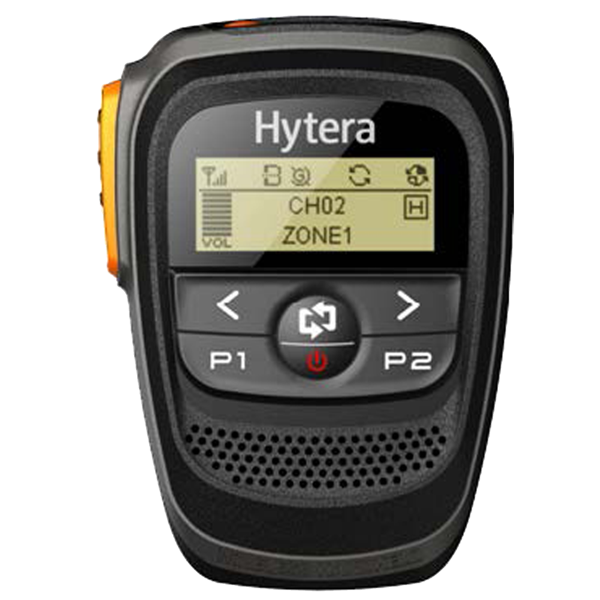

SM27W1

Bluetooth Speaker Microphone

PS22002

300W external power supply for mobile radios and repeaters

BRK12

Installation of up to two external power packs (PS22002) in a 19″ Rack

SEC1223

Power Supply Input 120VAC, Output 13.8VDC, 23 Amps

GPS04

Vehicle GPS Antenna (SMA,1575MHZ)

PC37

Programming cable for mobile radios and repeater

PC47

Programming cable with toggle switch to use with mobile radios and repeaters

PC49

Back-to-Back data cable for mobiles and repeaters

PC60

Ignition cable connected to the rear of mobile radio, enabling the radio to switch on and off automatically in vehicles (ignition sense)

Technical Specifications

Frequency RangeUHF 400-470MHz
Channel Capacity512 Channels (Analog or Digital)
Zone Capacity32 Zones with up to 256 Channels per Zone
Channel Spacing12.5kHz / 20kHz / 25kHz
Operational Voltage13.6V ±15%
Current DrainStandby: <0.5A Receive: <2.0A Transmit: 5W <4A, 45W UHF
Weight2lb, 8.5oz (1150g)
Dimensions (HxWxD)2 21/32” x 6 1/4” x 7 1/4” (42x159x164mm)
Frequency Stability± 0.5ppm
Antenna Impedance50Ω
DisplayLCD 1.5”, 6 lines
BluetoothBT 5.0 BLE+EDR
Time to First Fix Cold Start<60 Seconds (Typical TTFF)
Time to First Fix Hot Start<10 Seconds (Typical TTFF)
Horizontal Accuracy<5 meters
Digital Sensitivity0.18μV (BER5 5%)
Analog Sensitivity0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
Adjacent SelectivityTIA-603: 60dB@12.5kHz, 70dB@20/25kHz ETSI: 60dB@12.5kHz, 70dB@20/25kHz
Spurious Response RejectionTIA-603: 75dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
IntermodulationTIA-603: 75dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
BlockingTIA-603: 00dB ETSI: 84dB
Hum and Noise40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz
Rated Audio Power OutputInternal (20 Ohm load) 3W, 8W Max External (8 Ohm load) 8W, 20W Max
Rated Audio Distortion≤3%
Audio Response+1 to -3dB
Conducted Spurious Emission<-57dBm
RF Power OutputUHF High Power 5-45W
FM Modulation11K0F3E @ 12.5kHz 14K0F3E @ 20kHh 16K0F3E @ 25kHz
4FSK Digital Modulation12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission-36dBm <1GHz, -30dBm >1GHz
Modulation Limiting±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz
FM Hum and Noise40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 20/25kHz
Adjacent Channel Power60dB @ 12.5kHz, 70dB @ 20/25kHz
Audio Response+1 to -3dB
Audio Distortion≤3%
Digital Vocoder TypeAMBE+2TM
Operating Temperature-22°F to +140°F (-30°C to +60°C)
Storage Temperature-40°F to +185°F (-40°C to +85°C)
ESDIEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air
Dust and Water IngressIP54 Standard
HumidityPer MIL-STD-810H US Military Standard
Shock and VibrationPer MIL-STD-810H US Military Standard
HM682-U1UHF 400-470MHz, 5-45W
HM682-G-BT-U1UHF 400-470MHz, 5-45W with GPS and Bluetooth
