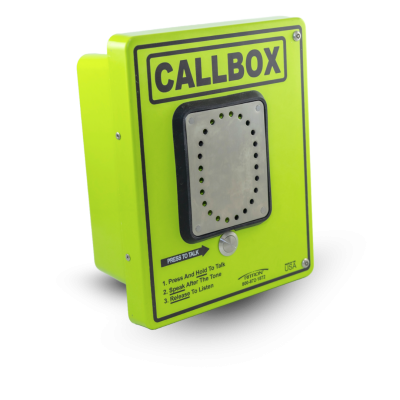

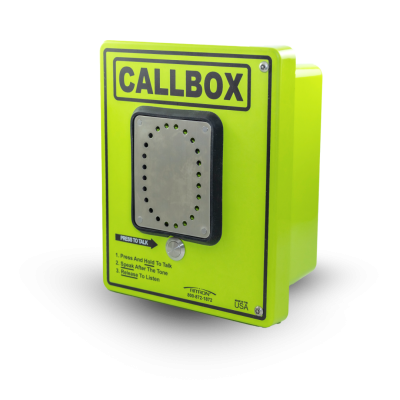

HD Series Callbox, Analog

Introducing the NEW HD Series Analog Callbox—built on Legacy XT reliability, now offering durable design, clear audio, improved range, and long battery life. Enhance safety and response times without wires or construction.

The HD Series suits vandal-prone sites, operating on alkaline batteries (Auto Turn-Off or Always On), or external AC power (RPS-EXPO and pn60201124 Cable).

Built for harsh conditions:

  • Purpose-built radio transceiver
  • Gasket-sealed, heavy-duty green fiberglass enclosure

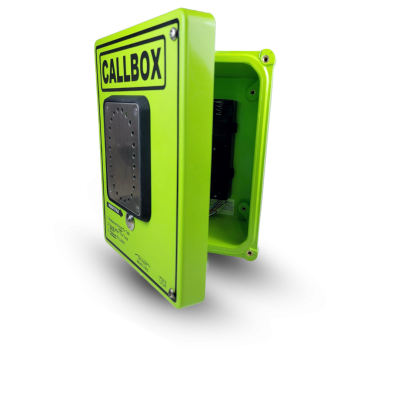

  • Hinged door for easy installation
  • Tamper-resistant fasteners
  • Aluminum push-to-talk button
  • Built-in antenna

*Note: External antenna requires optional cable pn 602011_34*

Enjoy crisp, long-range communication between staff and visitors anywhere your analog radios go—on the plant floor, in maintenance areas, or at entry points.

  • Wireless, 2-Way, Push-to-Talk, Narrowband, Analog Technology
  • Improved Range Performance
  • 800mWatt (if using Battery), 2 Watt Transmit Power (if using external power supply)
  • Loud, Easy-To-Hear Audio Output (Adjustable)
  • Rugged, Fiberglass Reinforced Enclosure, Vandal-Resistant
  • Weatherproof, Gasket-Sealed
  • Hinged Door w/ Captive Security Fasteners
  • Built-In Antenna, Provision For External Antenna If Needed
  • Built-In Relay For Remote Access Control (Gate Controllers) or Strobe Light Accessory
  • Recordable Voice Messages (Greeting, Alert, Low Battery, Power Fail Message)
  • Sensor Input (Open/Close) w/ Recordable Voice Message, Auto-Transmit On Sensor Detect
  • Alkaline Battery Powered (Auto Turn-Off) or Externally Powered For Always-On w/ Optional AC Adaptor (pn RPS-EXPO)
  • RF Channels:1 Channel Analog(12.5KHz)
  • Signaling: CTCSS & DCS Encode/Decode, DTMF Encode/Decode, SelCal Encode/Decode, 2-Tone Decode Only
  • Dimensions:  8” H x 6” W x 4” D
  • Weight: 2.75 lbs
  • Enclosure Material: Gasket Sealed, Reinforced Fiberglass, Hinged Door, Security Fasteners
  • Colors:  High-Viz Green
  • Environmental: Weatherproof, shock and vibration per Ritron test
  • Operating Temperature: -20°C to +55°C (-4°F to 131°F) Battery rating. At 0°C the capacity is < 50% rated) Talk range will decrease at low temperatures when operating on alkaline batteries.
  • Programming: Field programming capability of limited parameters. Full programming capability using internal USB Connector used for full PC Programming.
  • Built-in Remote Control Relay (7 Series): Can be used to remotely control gates, doors or strobe light. (7 Series) Relay switch is controlled when callbox receives the pre-programmed selective signaling command code.
    • SPDT, 3A, 125VAC/30VDC – Normally Open or Normally Closed (NO Default). Modes of Operation: Momentary or Toggle, On/Off.
    • Aux Sensor Monitoring Input : Optional sensors used to detect motion, gate movement, vandal/tamper or vehicle presence can be connected to the callbox using the sensor input.
    • Sensor input responds to an Open or Closed switch. Callbox will send either an alarm tone or a recordable voice message when optional switch/sensor detects a change.
    • Can also be programmed to automatically turn callbox ON and transmits recordable voice message or alarm tone to radios monitoring callbox activity.
  • Adjustable Speaker Volume: Adjustable 20% to 100%
  • Automatic Turn-Off Feature: Conserves batteries. Selectable turn-off times will automatically turn callbox off after a set period of inactivity on the radio channel. Auto Turn-OFF feature must be enabled when using battery only power.
  • Always On Feature:  Callbox can be powered in Always On mode with optional external power supply (pn RPS-EXPO, 110-220V AC adapter). Allows incoming call to be heard at any time.
  • Listen-In Feature: Callbox can be selectively paged to allow remote monitoring of audio in the vicinity of the callbox.
  • Busy Channel TX Inhibit: Prevents Callbox from transmitting if someone else is using the radio channel.
  • Recordable Voice Messages: Greeting Message/Send Call Alert Message/Sensor ON/Sensor OFF/ Low Battery Message/Send Power Fail Message/Auto “Re-Send” – Selectable 0-5 times.
  • Battery Life:  D-Cell Alkaline Batteries: Number of Transmissions: Approximately 6,000 based on a duty cycle of: 3 Seconds Receive, 3 Seconds Transmit, 10 Seconds Standby
  • RQX-HDMK – Optional Post/Wall or Gooseneck Mounting Bracket
  • RAM-1545 – UHF/VHF, Dual band, magnetic mount antenna, unity gain, 25 feet of cable, BNC connector
  • RAM-45 – UHF Magnetic mount antenna, unity gain, 12 feet of cable, BNC connector
  • R-Strobe-DC – Blue Strobe Light.
  • RPS-EXPO – External power supply cube, rated for indoor use only, 110VAC to 12VDC.
  • Solar Power Kit – Includes: 10 Watt solar panel, Sealed lead acid battery, charge controller and NEMA housing.
    • Dimensions: Solar Panel 16.4”H x 10.6”W x 0.9”D.
    • Enclosure 12”H x 10.25”W x 6.25” D. Weight: 10lbs.
    • Mounts to flat surface.
