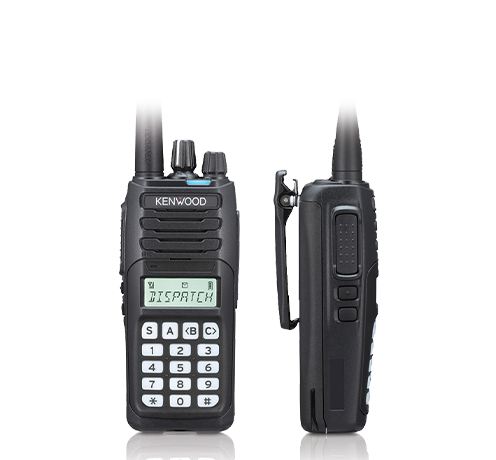

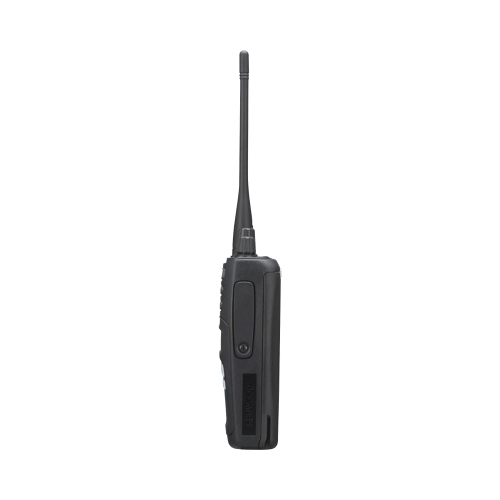

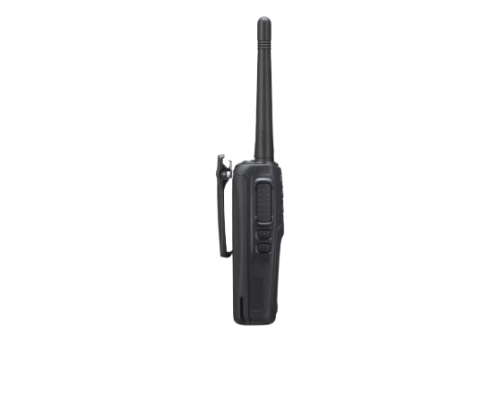

NX-1200/1300
VHF/UHF DIGITAL TRANSCEIVER
A SINGULAR SOLUTION
If you are thinking of harnessing the latest digital protocols – NXDN™ or DMR – to enhance business efficiency or FM analog for its simplicity, the NEXEDGE NX-1200DV/1300DU radios have you covered. Our singular solution offers the widest selection of two-way radios for everyday use. The model matrix also includes basic and keypad variations, with or without a high-contrast backlit LCD. Other features include a 7-color LED indicator and the popular KENWOOD 2-pin audio accessory connector. Plus, mixed-mode operation ensures seamless integration with legacy radios while smoothing the onward migration path to digital. But whatever your specific needs, audio quality is what determines clear voice communications – which is why KENWOOD radios are used under the most grueling conditions, like the cockpit of a racing car. Thanks to our extensive experience with professional systems, reliability is second to none. So whatever your radio requirements, KENWOOD’s NEXEDGE NX-1200DV/1300DU radios offer a single platform that’s right for you.
FEATURES
- Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM
- analog protocols

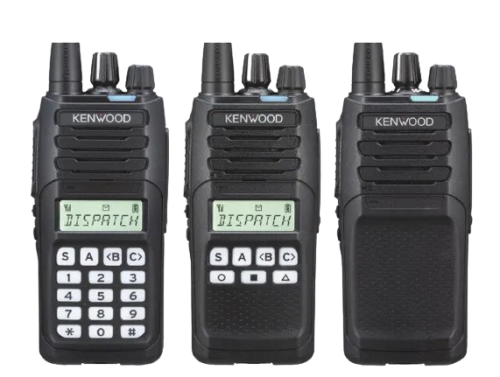

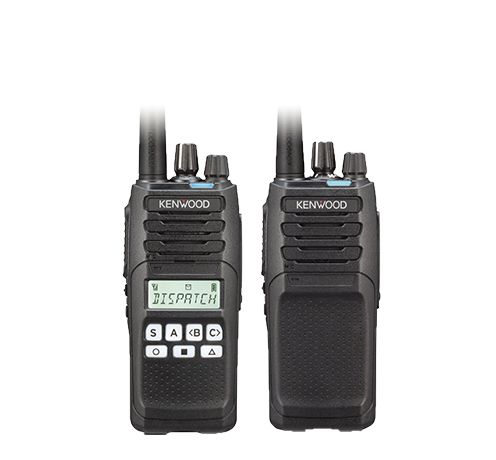

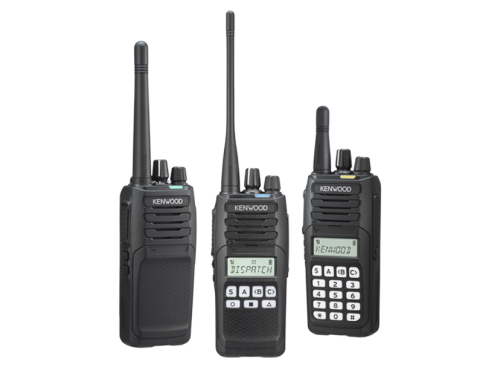

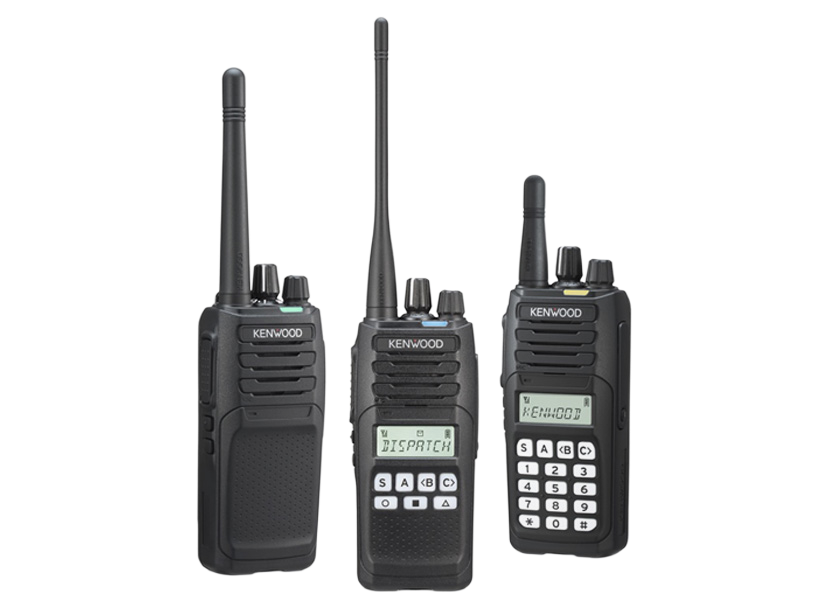

- Choose from direct & intuitive LCD with standard keypad or basic enclosures
- Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
- Large 7-Color LED indicator on the top panel
- Selective Power-on LED
- Selective Call Alert LED
- Battery Level Indication
- Multi-status function indication
- RF output power 5W both on VHF/UHF
- Mixed Zone – analog and digital
- Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable
- digital processor
- Audio Equalizer: Flat, High, Low
- Auto Gain Control: On, High, Low, Off
- Noise Suppressor
- Microphone type settings
- Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi,
- Normal Scan
- VOX & PTT –triggered Semi- VOX, Voice-operated TX
- Emergency Function: Customizable Emergency Profile
- Lone Worker
- Max / Min Volume setting & Volume control
- Voice Announcement
- Remote Stun / Kill / Check
- Front Panel Programming Mode (for Keypad model)
- Electronic Serial Number (ESN)
- MIL-STD-810 C/D/E/F/G
- IP54 and IP55
- Intrinsically safe option (Available later)
NX-1200/1300 Accessories
KNB-45L
2,000mAh/7.4V
Li-Ion Battery Pack
KNB-69L
2,550mAh/7.4V
Li-Ion Battery Pack
KSC-35SK
Fast Charger For the KNB-45L/69L
82LCM (3-Hour)

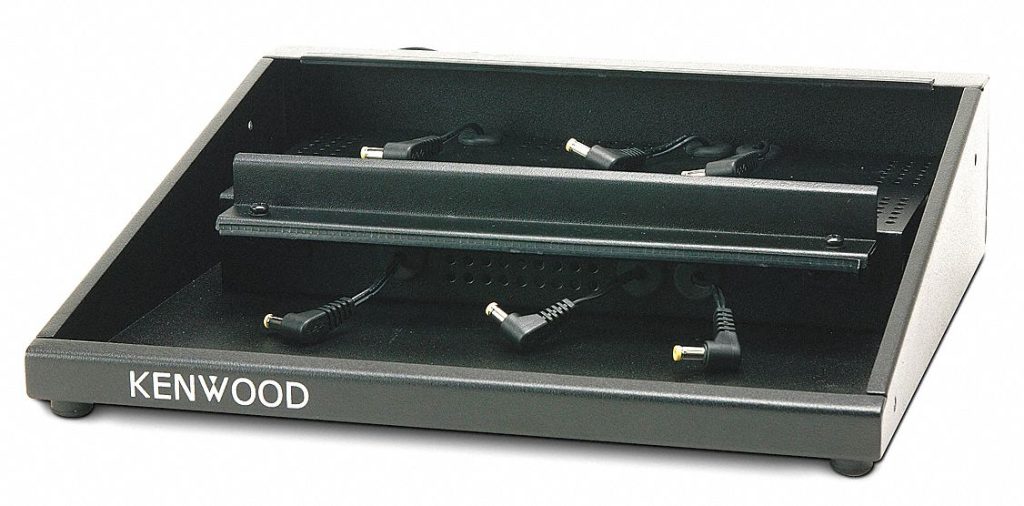

KMB-28AK
Six Unit Charger Adapter for the KSC-35SK chargers
(chargers not included)
KVC-22
110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger
(charger not included)
KBH-10
BELT CLIP (2.5″)
KRA-22
VHF HELICAL ANTENNA (Low Profile)
KRA-23
UHF HELICAL ANTENNA (Low Profile)
KRA-26
VHF HELICAL ANTENNA (Standard Length)
KRA-27
UHF WHIP ANTENNA (Standard Length)
KRA-41
VHF STUBBY ANTENNA
KRA-42
UHF STUBBY ANTENNA
SPECIFICATIONS
| GENERAL | NX-1200DV | NX-1300DV | |
|---|---|---|---|
| Frequency Range | 136-174 MHz | Type 1: 450-520 MHz | |
| Type 2: 400-470 MHz | |||
| Max. Channels Per Radio | 260 (64 for basic model) | ||
| Number of Zones | 128 (4 for basic model) | ||
| Max Channels per Zone | 250 (16 for basic model) | ||
| Channel Spacing | Analog | 30*1 / 25*1 / 15 / 12.5 kHz | |
| Digital | 6.25 kHz/12.5 kHz | ||
| Power Supply | 7.5 V DC +- 20% | ||
| Battery Life | DMR | Analog/ NXDN | |
| KNB-45L (2000 mAh) | Approx. 14.5 hours | Approx. 11 hours | |
| KNB-69L (2550 mAh) | 12 / 9.5 hours, 17.5 / 13 hours | Approx. 14 hours | |
| Operating Temperature | -22ºF to +140ºF (-30ºC to +60ºC) | ||
| Frequency Stability | ±0.5 ppm (-30°C to +60°C; +25°C Ref.) | ||
| Dimensions (W x H x D) Projections Not Included | Radio with KNB-45L/82LCM | 2.13 x 4.84 x 1.32 in (54 x 123 x 33.5 mm) | |
| Radio with KNB-69L | 2.13 x 4.84 x 1.48 in (54 x 123 x 37.5 mm) | ||
| Weight | Radio only | 6.17 oz (175 g) | |
| Radio with KNB-45L/82LCM | 10.41 oz (295 g) | ||
| Radio with KNB-69L | 10.93 oz (310 g) | ||
| FCC ID | K4450100 | Type 1: K44501101 (pending) | |
| Type 2: K44501100 | |||
| IC Certification | 282F-501000 | 282F-501100 | |
| RECEIVER | NX-1200DV | NX-1300DV | |
| Sensitivity | NXDN® 6.25 kHz Digital (3% BER) | 0.18 μV | |
| NXDN®12.5 kHz Digital (3% BER) | 0.22 μV | ||
| DMR 12.5 KHz Digital (5% BER) | 0.18 μV | ||
| DMR 12.5 KHz Digital (1% BER) | 0.25 µV | ||
| Analog 12.5/25 KHz (12dB SINAD) | 0.24 µV / 0.20 µV | ||
| Selectivity | Analog @ 12.5 kHz | 68 dB | |
| Analog @ 25 kHz | 74 dB | ||
| Intermodulation | 70 dB | ||
| Spurious Rejection | 70 dB | ||
| Audio Distortion | 7% | ||
| Audio Output Power | 1 W / 12Ω (Internal Output) | ||
| TRANSMITTER | NX-1200DV | NX-1300DV | |
| RF Power Output (High / Mid / Low) | 5 W/4 W/1 W | ||
| Spurious Emission | -70 dB | ||
| FM Hum & Noise | Analog @ 12.5kHz | 40 Db | |
| Analog @ 25kHz | 45 Db | ||
| Audio Distortion | 2% | ||
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | ||
| Emission Designator | 16K0F3E, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D, 7K60FXD, 7K60F7W | ||
