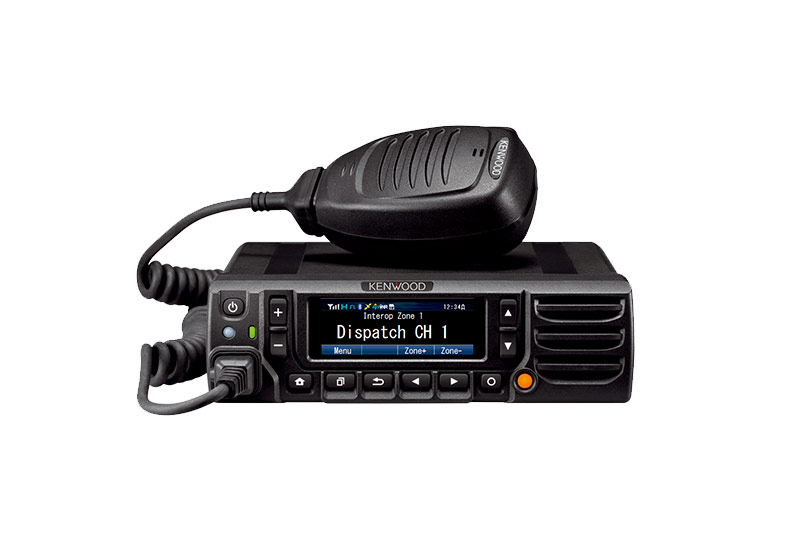

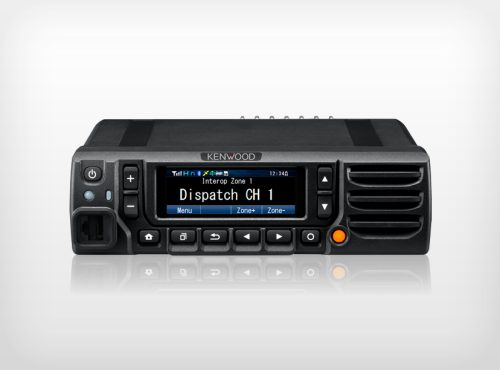

NX-5700/5800/5900
VHF/UHF/700-800 MHz MULTI-PROTOCOL DIGITAL & ANALOG MOBILE RADIOS
The NX-5000 Series offers unsurpassed interoperability for a wide variety of users as it supports three digital CAIs — NXDN, DMR and P25 (Phase 1 & 2) — plus FM analog in a single radio. Best of all, a desired CAI can be selected at will, giving you the freedom to migrate at your own pace — whether you are intent on going fully digital, undecided about which digital system to pick, or just wanting to maintain both digital and analog for a while. An NX-5000 radio can simultaneously support two digital protocols plus analog, offering the following combinations: FM/DMR/ NXDN, FM/NXDN/P25, and FM/DMR/P25.
FEATURES
- Multi-Digital operation in NXDN, DMR (Tier 2 & 3), and P25 (Phase 1 & 2) protocols
- Any combination of two digital protocols may be selected from NXDN, DMR, and P25
- Mixed Digital & FM Analog Operation allows intelligent migration in mixed sites and easy migration with digital radios in other sites
- Large, Color 2.55” (154 x 422 pixels) TFT Display for at-a-glance operational status
- Easy to follow GUI and Multi-line Text to convey information

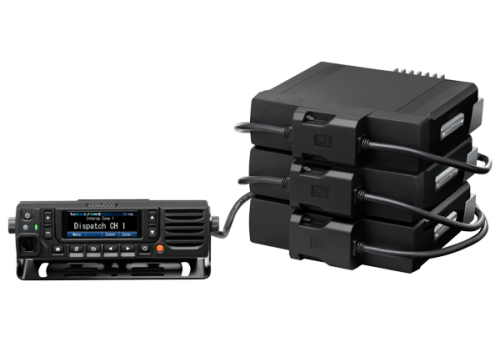

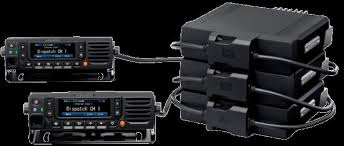

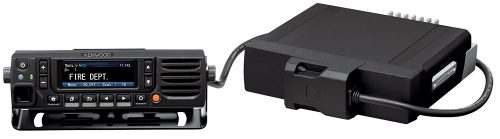

- Dual Remote Control Head and Multi-Band (Multi RF Deck) Control Option providing scalable configurations for various operations and applications
- Built-In GPS Receiver for effective fleet and incident management
- Bluetooth® Module Built-in for hands-free and IoT applications operation
- Renowned KENWOOD Audio Quality achieved with Active Noise Reduction (ANR) that utilizes built-in DSP with two microphones for suppression of ambient noise
- Built-in 56-bit DES Encryption
- Optional 256-bit AES Encryption
- microSD/microSDHC Up to 2GB/32GB Memory Card Slot for increased memory capacity for “Voice & Data”
- 50 W to 5 W (136-174 MHz) Models
- 45 W to 5 W (380-470, 450-520 MHz) Models
- 30 W to 2 W (700 MHz) Model 35 W to 2 W (800 MHz) Model
- Maximum of 1024 CH/Zone, 128 Zones (4000 CH. Opt)
- DB-25 Accessory Connector
- AMBE+2™ Enhanced Vocoder
- 4 W Speaker Audio
NX-5700/5800/5900 Accessories
REMOTE KITS
MULTI RF DECK
CABLES
SPEAKERS
ACCESSORIES

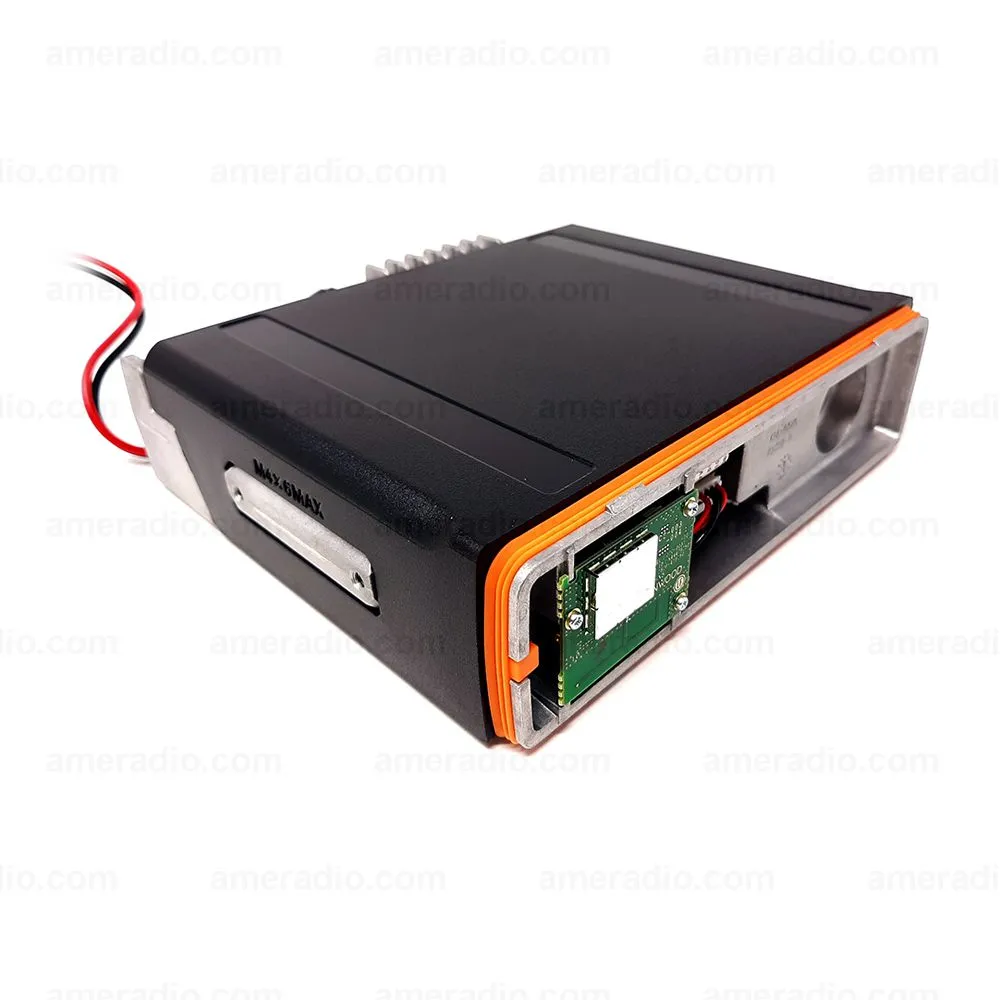

NX-5700BK
VHF (50W, 136-174 MHz) RF DECK ONLY
NX-5800BK
UHF (45W, 450-520 MHz) RF DECK ONLY
NX-5800BK2
UHF (45W, 380-470 MHz) RF DECK ONLY
NX-5900BK
700/800 MHZ, 35W RF DECK ONLY
KCH-19
BASIC CONTROL HEAD KIT
KCH-20R
FEATURED CONTROL HEAD

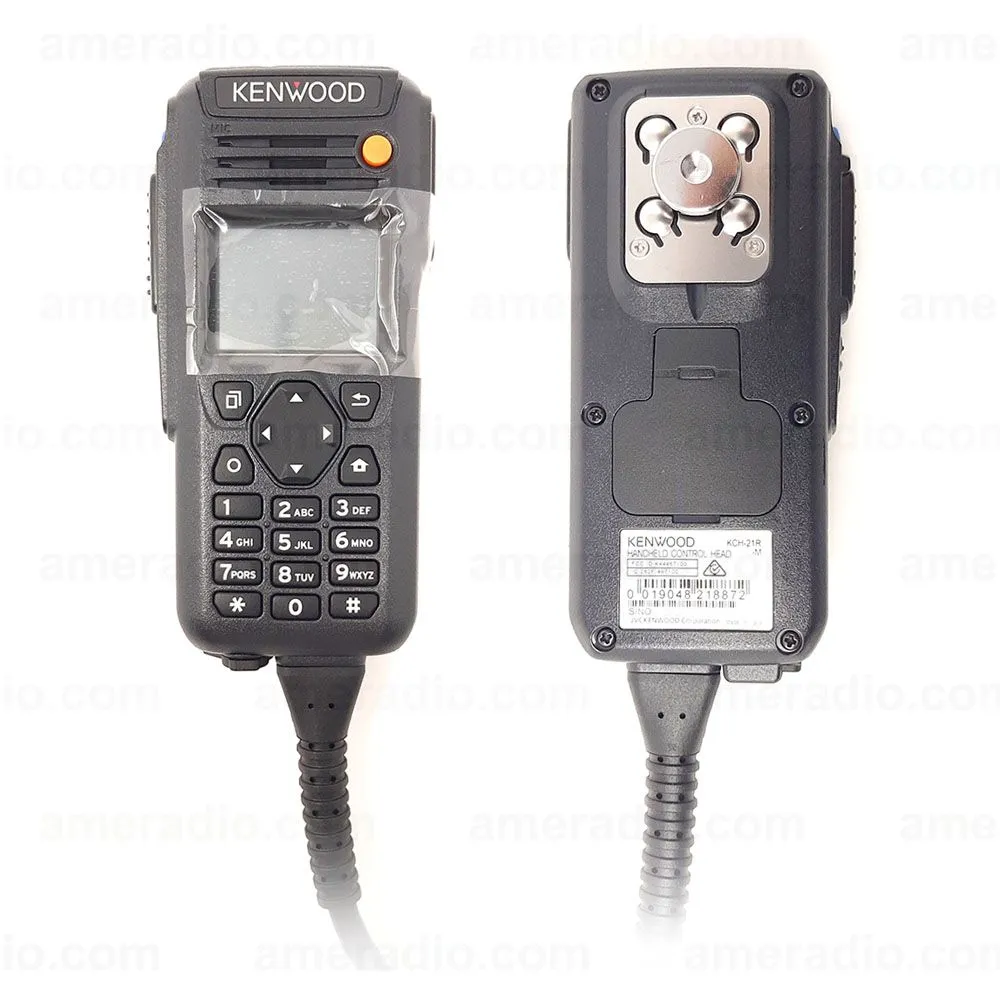

KCH-21RM
HANDHELD CONTRL HEAD FOR LONG CABLE*Requires KCT-77M2 (17 ft.)
KCH-21RM-S
HANDHELD CONTROL HEAD WITH SHORT CABLE (4 ft.)
KRK-14H
CONTROL HEAD INTERFACE KIT (Adapter for the Head)
KRK-15B
CONTROL HEAD REMOTE KIT (Adapter for the RF Deck)

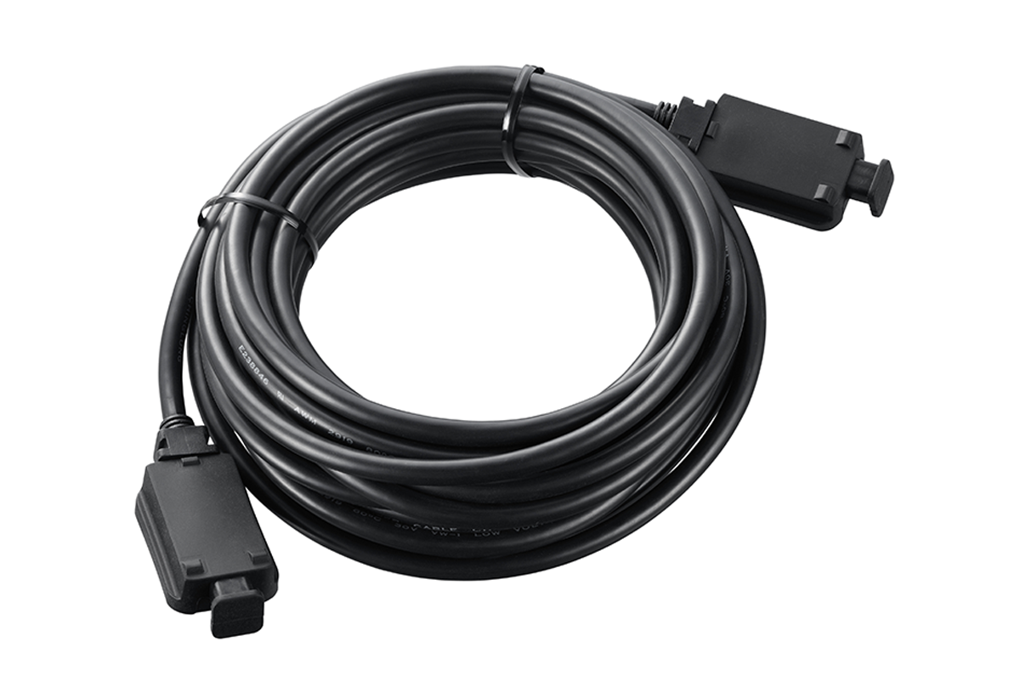

KCT-71M2
Remote Control Cable (17 feet)
KCT-71M3
Remote Control Cable (25 feet)

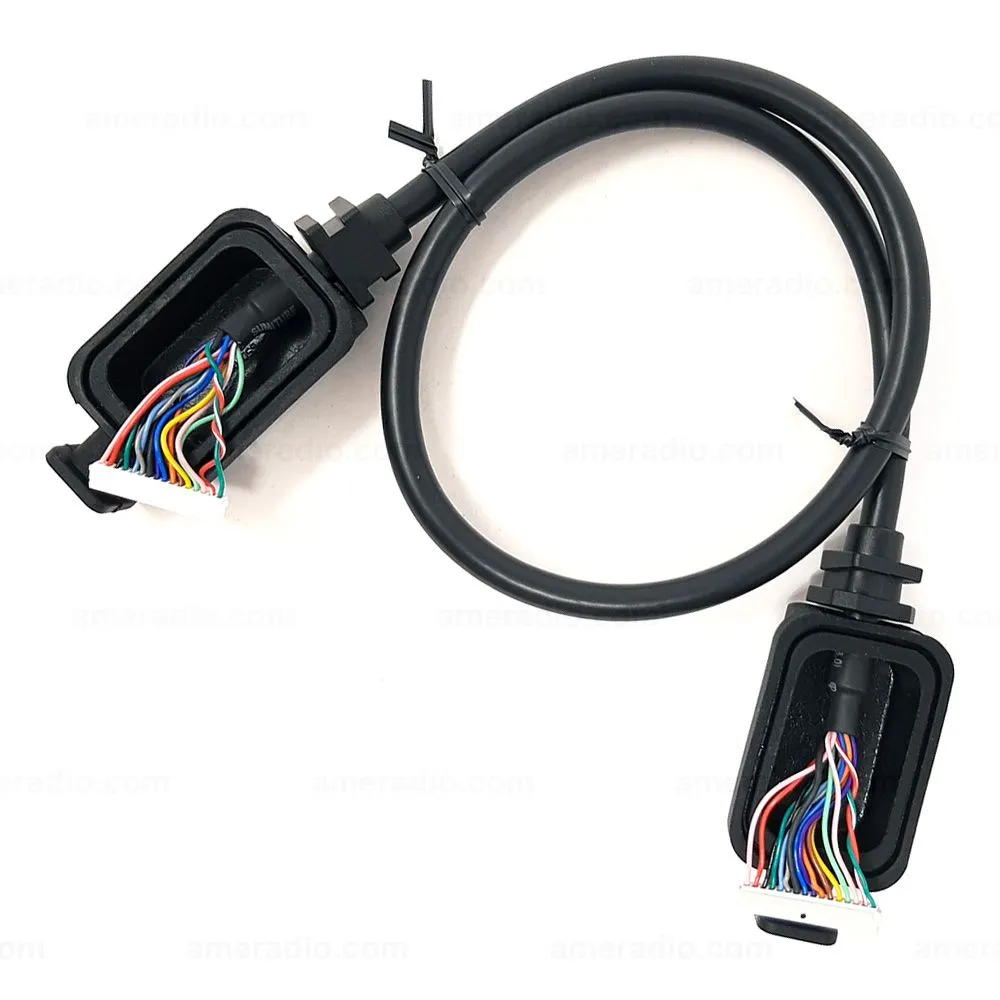

KCT-71M4
Remote Control Cable (1.6 feet)
KCT-71A50
KCT-71A Extended Control Head Cable (up to 50 ft. max.)
KCT-71A100
KCT-71A Extended Control Head Cable (up to 100 ft. max.)

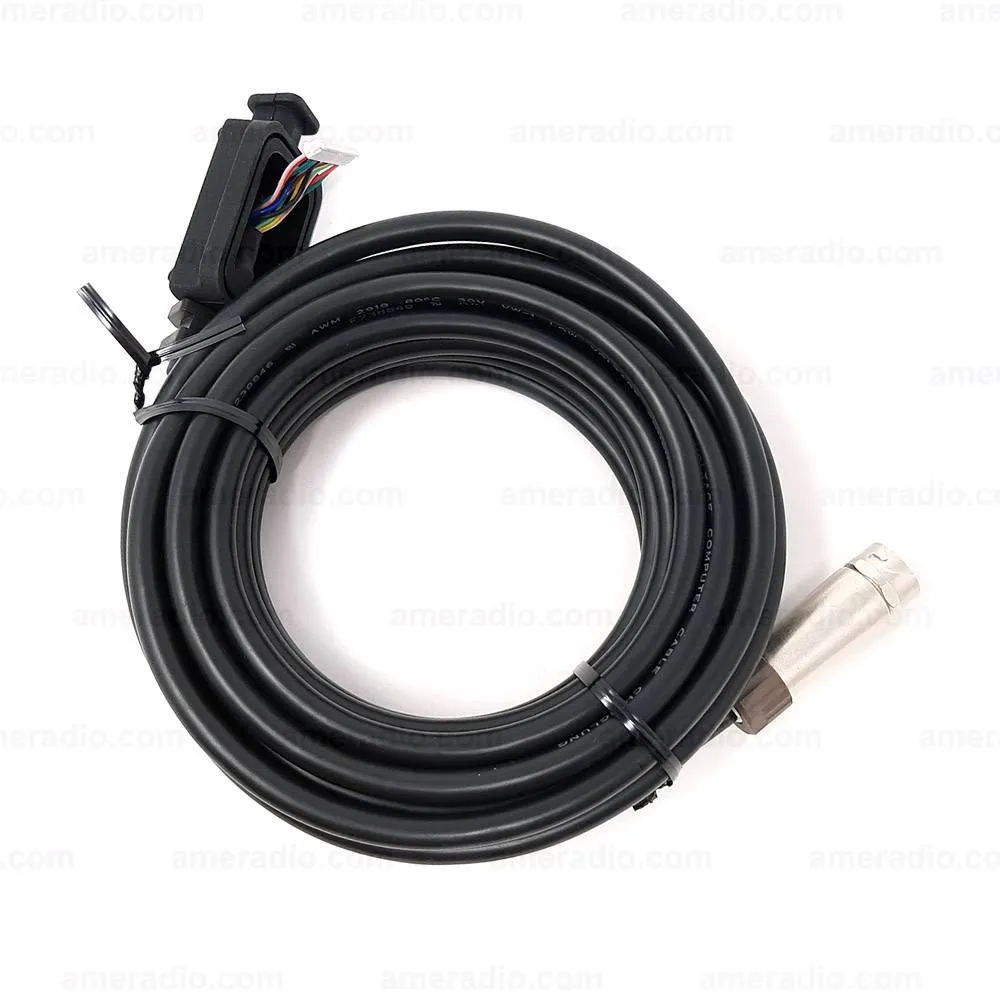

KCT-77M2
Remote Control Cable for KCH-21RM (17 feet)
KMC-35
MICROPHONE
KMC-36
KEYPAD MICROPHONE

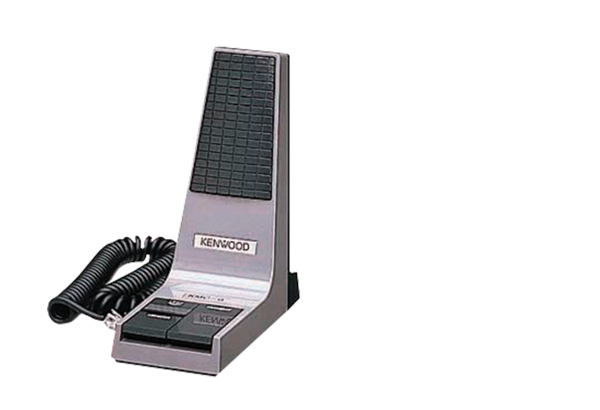

KMC-9C
Control Station Desktop Microphone (NOT Compatible with TDMA Operations)
KMC-59C
Control Station Desktop Microphone
KCT-73MIC
EXTERNAL MIC KIT (Cable length: 3m)
KCT-72
EXTERNAL MIC KIT (Cable length: 3m)
KES-3
EXTERNAL SPEAKER
(compact low profile;3.5 mm plug)
KES-5
EXTERNAL SPEAKER
(40 W max input,requires KAP-2)
KCT-23
DC POWER CABLEDC POWER CABLE (M:10 ft (3m)/ M3: 23 ft (7m))

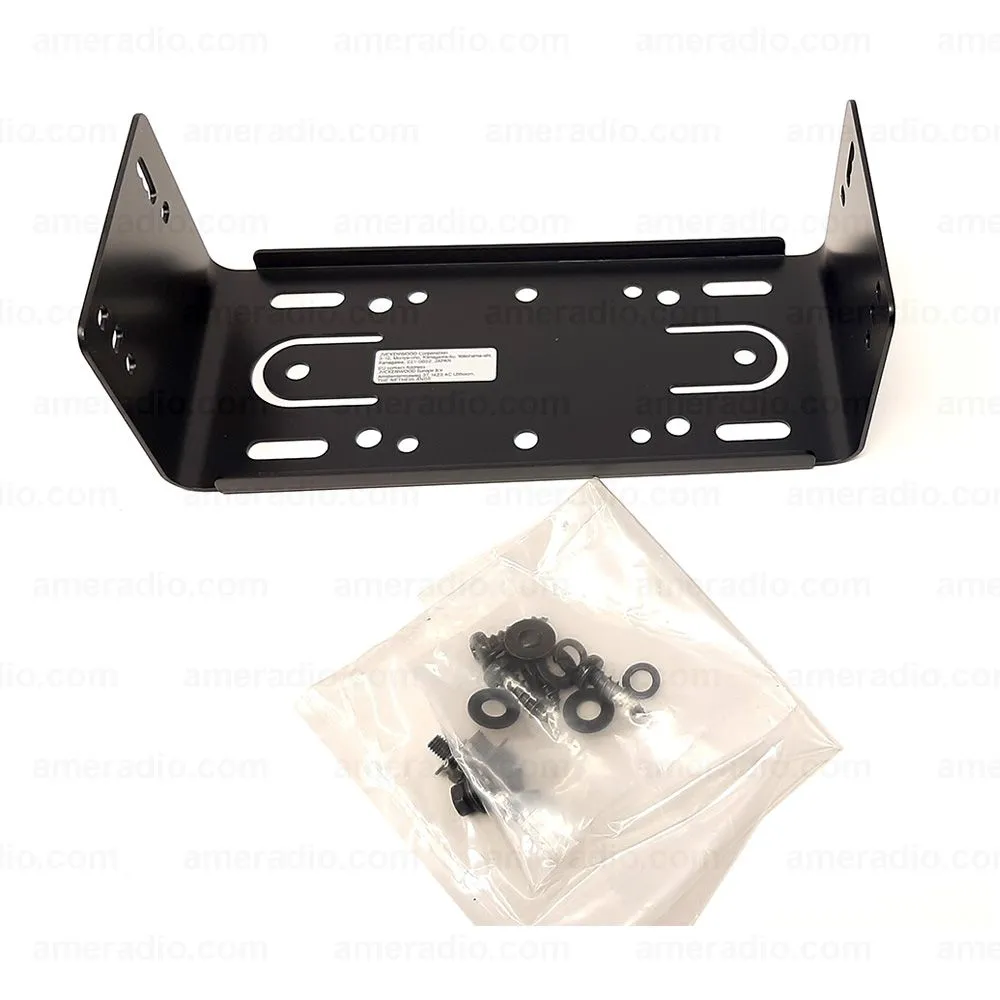

KMB-33M
Mounting Bracket
KCT-18
IGNITION SENSE
CABLE(requires KCT-60)
KLF-2
LINE FILTER
KRA-40G
GPS ACTIVE ANTENNA
KMB-10
KEY LOCK ADAPTER
KPS-15
DC POWER SUPPLY
KMB-34
MOUNTING CASE FOR KPS-15 AND MOBILE RADIOS
SPECIFICATIONS
| GENERAL | NX-5700 | NX-5800 | NX-5900 | |
|---|---|---|---|---|
| Frequency Range | 136-174 MHz | Type 1: 450-520 MHz | RX: 763-776, 851-870 MHz | |
| Type 2: 380-470 MHz | TX: 763-776, 793-806, 806-825, 851-870 MHz | |||
| Max. Channels Per Radio | 1024 (Up to 4000 channels with option) | |||
| Number of Zones | 128 | |||
| Max. Channels per Zone | 512 | |||
| Channel Spacing | Analog | 12.5/15/25/30 kHz | 12.5/25 kHz | 12.5/25 kHz |
| Digital | 6.25 kHz/12.5 kHz | |||
| Power Supply | 13.6 V DC ±15 % | |||
| Current Drain | Standby | 0.45 A | ||
| RF | 2.3 A | |||
| TX | 13 A | |||
| Operating Temperature | -22ºF to +140ºF (-30ºC to +60ºC) | |||
| Frequency Stability | ±1.0 ppm | |||
| Dimensions (W x H x D) | Radio w/ Control Head (KCH-19) | 6.69 x 1.89 x 6.93 in (170.0 x 48.0 x 176.0 mm) | 6.73 x 1.89 x 7.72 in (171.1 x 48.0 x 196 mm) | |
| Weight | Radio w/ Control Head (KCH-19) | Radio w/ Control Head (KCH-19) | ||
| FCC ID | K44471100 | Type 1: K44471200 | K44478500 | |
| Type 2: K444712011 | ||||
| IC Certification | 282F-471100 | 282F-471201 | 282F-478500 | |
| RECEIVER | NX-5700 | NX-5800 | NX-5900 | |
| Sensitivity | NXDN® 6.25 kHz Digital (3% BER) | 0.20 μV | ||
| NXDN®12.5 kHz Digital (3% BER) | 0.25 μV | |||
| DMR Digital (5%BER) | 0.25 μV | |||
| DMR Digital (1%BER) | 0.40 µV | |||
| P25 Digital (5%BER) | 0.25 μV | |||
| P25 Digital (1%BER) | 0.40 µV | |||
| Analog (12dB SINAD) | 0.25 µV | |||
| Selectivity | Analog @ 12.5 kHz | 71 dB | 70 dB | |
| Analog @ 25 kHz | 81 Db | 78 dB | ||
| Intermodulation | 80 dB | |||
| Spurious Rejection | 85 dB | |||
| Audio Distortion | 2% | |||
| Audio Output Power | 4 W/4 Ω (Remote Control Head: 3 W/4 Ω) | |||
| TRANSMITTER | NX-5700 | NX-5800 | NX-5900 | |
| RF Power Output | 50 to 5 W | 45 to 5 W | 30 to 2 W (700 MHz) | |
| 35 to 2 W (800MHz) | ||||
| Spurious Emission | -73 dB | -75 dB | -80 dB | |
| FM Hum & Noise | Analog @ 12.5kHz | 45 dB | 40 dB | |
| Analog @ 25kHz | 50 dB | 40 dB | ||
| Audio Distortion | 2% | |||
| Emission Designator | 16K0F3E, 14KOF3E*, 11K0F3E, 8K10F1E, 8K10F1D, 8K10F1W, 8K30F1E,8K30F1D, 8K30F7W, 7K60FXE, 7K60FXD, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D | |||
