PD482i DMR Two-Way Radio
Commercial UHF and VHF Two-Way DMR Radios with LCD Display and Optional Bluetooth and GPS
The PD482i is a cost-effective two-way radio with advanced features:
Functions in digital and analog modes in radio-to-radio calls, or with any Hytera repeater or base station
Rugged and ergonomic design with a full keypad, high contrast OLED screen, and programmable buttons
Built-in GPS and Bluetooth, emergency calls, and voice-activated communications (VOX)
Supports Tier II radio networks, pseudo trunking, and Radio Registration Service for connectivity to dispatch applications
Functions
EMERGENCY ALARMS AND CALLING
Emergency Alarms can be sent to other radios via the one touch programmable button
ENCRYPTION
Ensures private and secure voice and data transmission
TEXT MESSAGING
Free-form text messaging with full keypad. Stores up to ten pre-dedefined text messages
BLUETOOTH
Built-in Bluetooth enables connectivity to earpieces and other wireless accessories (only on PD482i-G-BT models)
ROAMING
Allows radios to seamlessly move between connected repeaters with uninterrupted voice transmission
RADIO REGISTRATION SERVICE
RRS allows the PD482i to communicate with dispatch and unified communications applications
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calling
HIGH QUALITY AUDIO
Audio equalizer adjusts low, mid, and high frequency gain. Provides the best audio performance in noisy or quiet environments
ANALOG & DIGITAL AUTO DETECT
Simultaneously monitors analog and digital modes and automatically responds in each mode
REAL TIME CLOCK
Real-time display, call logs, GPS synchronization, and messaging
GPS POSITIONING
The built-in GPS enables real-time location tracking for dispatch applications (only on PD482i-G-BT models)
VOX
Voice activated communications (VOX) activates the microphone by speaking to enable hands-free operatio. Also supported on external earpiece and microphone accessories.
PSEUDO TRUNK
This virtual trunking feature automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency
LONG-LIFE BATTERY
Powerful Li-Ion 2000mAh battery delivers up to 22 hours of operation in digital mode and 16 hours in analog mode
RELIABLE AND DURABLE
compliant with MIL-STD-810 G for impact strength and durability, and IP54 water and dust ingress
UPGRADE FEATURES (Optional)
PRIORITY INTERRUPT
Priority Interrupt allows dispatcher to interrupt existing calls with important emergency information
STUN/REVIVE
Stun/Revive enables dispatch and other users to disable/enable a radio if it is stolen, lost, or used maliciously
REMOTE MONITOR
Remote Monitor allows dispatcher to key the PTT button and listen in an emergency situation
PD482i – Standard Accessories
AN0435H21
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo
AN0153H12
VHF stubby Antenna, SMA connector, 147-160MHz, GPS 1575MHz, 17cm, with Hytera logo

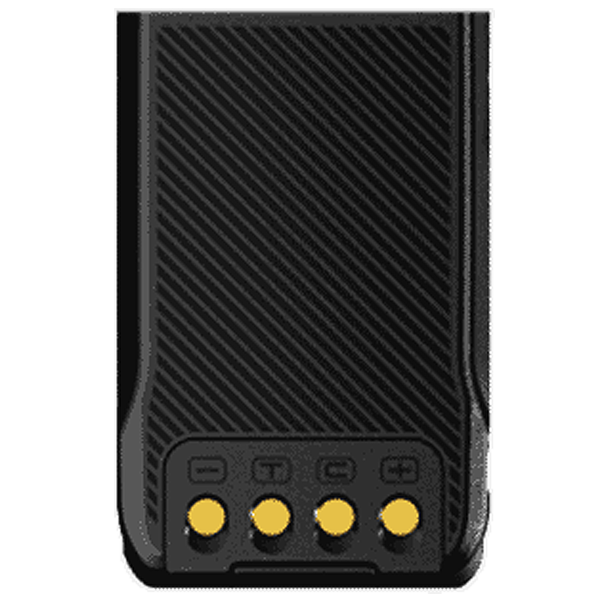

BP2010
Li-ion battery with 20 hours operating time (2000mAh)
PS1014
Power adapter (Micro USB) for PD3 series enables hassle free charging via PC or laptop

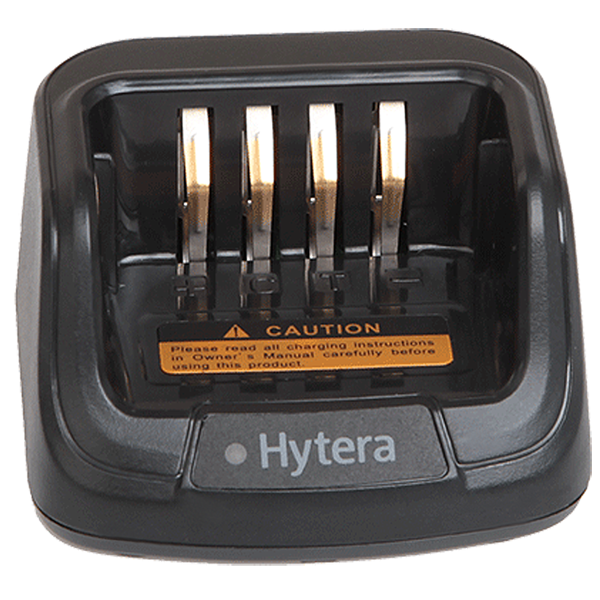

CH10A07
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries
BC08
Plastic belt clip with a spring and metal bracket
RO03
Nylon Wrist Strap
PD482i – Optional Accessories
AN0435H13
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo
AN0435W09
UHF Whip Antenna, SMA connector, 400-470MHz, 16cm
AN0460W19
UHF Long and fine antenna SMA connector 440-470MHz
AN0495W04
UHF Whip Antenna, SMA connector, 470-520MHz, 16cm
AN0141H07
VHF Stubby Antenna, SMA connector,136-147MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0153H08
VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0167H07
VHF Stubby Antenna, SMA connector,160-174MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0160H13
VHF Antenna, SMA connector, 146-174MHz, 15cm, no logo
AN0141H06
VHF Antenna, SMA connector, 136-147MHz, 17cm, with Hytera logo
AN0153H07
VHF Stout Long Antenna, SMA connector, 147-160MHz, 17cm, with Hytera logo
AN0167H06
VHF Stout Long Antenna, SMA connector, 160-174MHz, 17cm, with Hytera logo
AN0155H08
VHF Stout Long Antenna, SMA connector, 136-174MHz, GPS 1575MHz, 20cm, with Hytera
BP1503
Lithium polymer (1500mAh)
CHV09
In the vehicle charging solution convenient for portable radio batteries.
MCA08
Six-unit charger has the capacity to charge six batteries or portable radios
POA59
Charging unit provided for installation in MCA08 and MCA10 chargersr
BRK20
Enables secure installation of the multi-charger onto the wall for convenience and easy
NCN011
Nylon carrying case with half-open design and back-lock belt loop for easy installation
PCN006
Waterproof Bag
PC76
Data Programming Cable (USB Port)
Technical Specifications
General
| Frequency Range | UHF 400-470MHz VHF 136-174MHz |
| Channel Capacity | 256 (16 zones with 16 channels per zone) |
| Zone Capacity | 16 Zones with 16 Channels per Zone |
| Channel Spacing | 25/12.5KHz |
| Operational Voltage | 7.4W |
| Battery | 2000mAh (Li-Ion) Standard, 1500mAh Optional |
| Battery Life (5/5/90) | 22 hours Digital, 16 Analog (Standard 2000mAh) 16 hours Digital, 11 Analog (Optional 1500mAh) |
| Weight | 10.86oz (308g) |
| Dimensions (H x W x D) | 4 5/8” x 2 5/32” x 1 15/32” (117 x 55 x 37mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
GPS
| TTFF (Time to First Fix) Cold Start | <50 Seconds |
| TTFF (Time to First Fix) Hot Start | <5 Seconds |
| Horizontal Accuracy | <10 meters |
Receiver
| Digital Sensitivity | 0.22μV / BER 5% |
| Analog Sensitivity | 0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz |
| Intermodulation | TIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz |
| Spurious Response Rejection | TIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz |
| Hum and Noise | 40dB @ 12.5kHz, 43db @ 20kHz, 45dB @ 25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
Transmitter
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W, UHF High Power: 4W UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36 dBm 1 GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE++ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Enviromental
| Operating Temperature | -22oF to +140oF (-30oC to +60oC) |
| Storage Temperature | -40oF to +185oF (-40oC to +85oC) |
| ESD | IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IIP54 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
Ordering Information
| PD482i-G-BT-Uv | UHF 350-470MHz (Antenna 400-470), 256CH, 4W, GPS, Bluetooth |
| PD482i-G-BT-V1 | VHF 136-174MHz (Antenna 147-160 ), 256CH, 1-5W, GPS, Bluetooth |
| PD482i-Uv | UHF 350-470MHz (Antenna 400-470) 256CH, 4W |
| PD482i-V1 | VHF 136-174MHz (Antenna 147-160) 256CH, 1-5W |
DMR Tier II Conventional Repeaters
Increase coverage, expand capacity, and improve signal quality

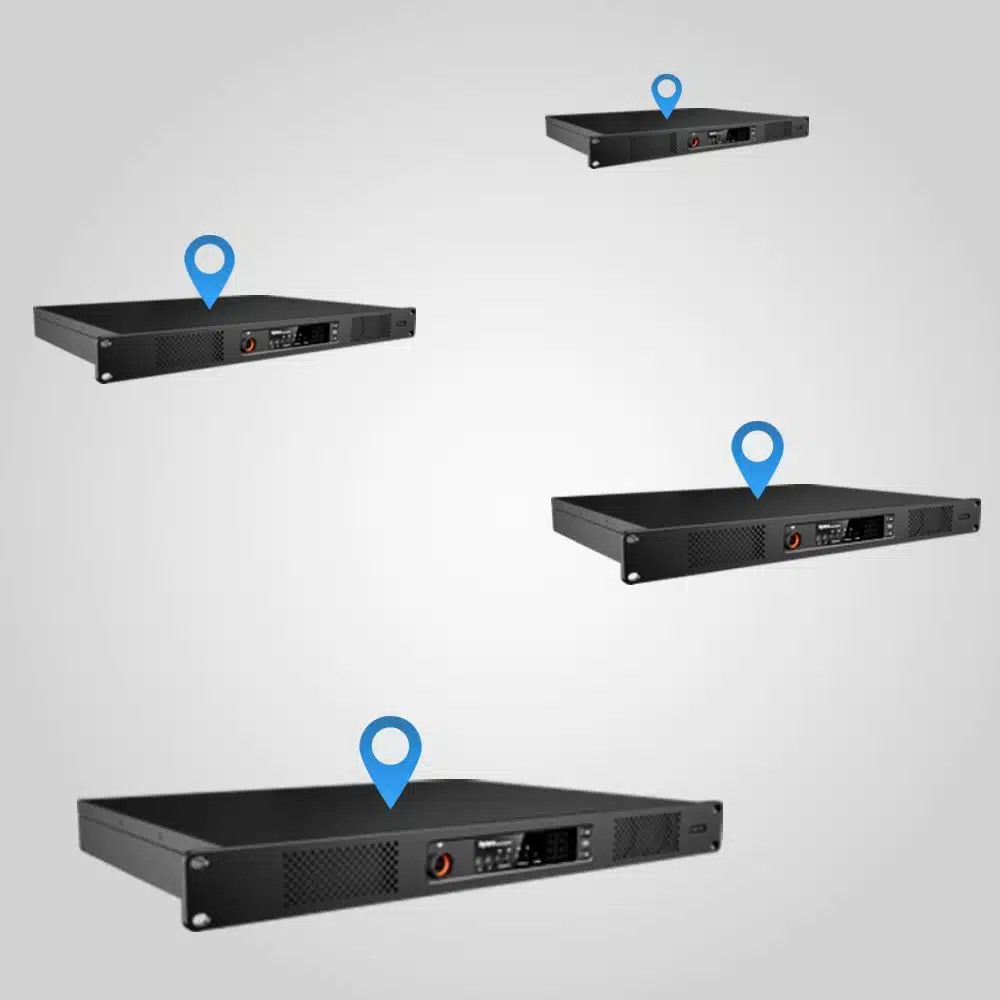

DMR IP Site Connect
