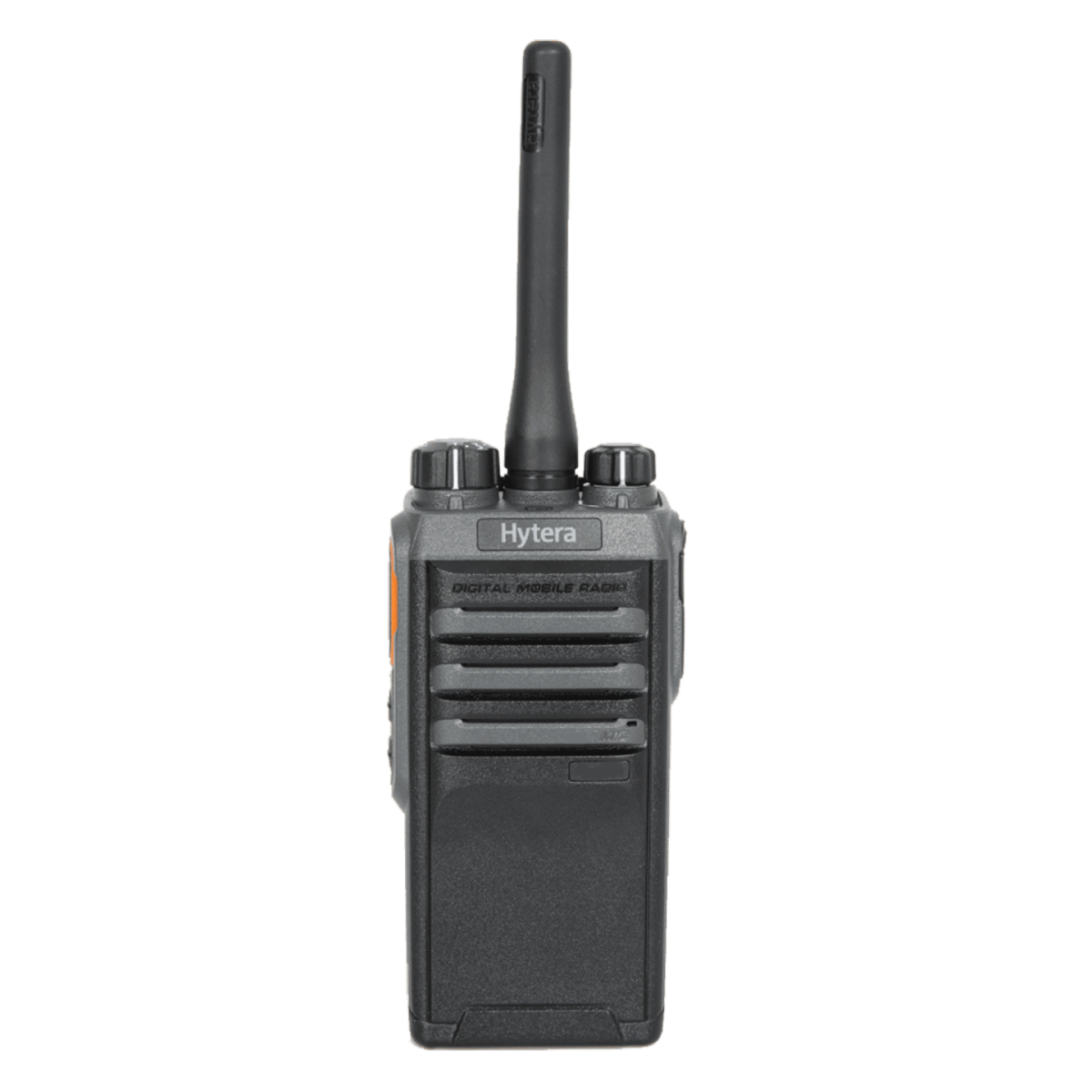

PD402i DMR Two-Way Radio
Commercial UHF and VHF Two-Way DMR Radios
Robust and reliable, the Hytera PD402i portable digital radio offers a simple communication solution, ideal for users operating in manufacturing, facilities management or education environments.
Functions
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calling
HIGH QUALITY AUDIO
Audio equalizer adjusts low, mid, and high frequency gain. Provides high-quality digital audio performance with loud and clear private calling, group calling, and all call.
RELIABLE AND DURABLE
IP55 rated for water and dust ingress and compliant with MIL-STD-810-G for impact strength and durability.
PRE-PROGRAMMED TEXT MESSAGING
One-touch sending of pre-programmed text messages. Stores up to ten pre-defined text messages.
UPGRADE FEATURES (OPTIONAL)
Encryption for secure audio and data. Remote Monitor allows dispatcher to key the PTT button and listen in an emergency situation. Stun/Revive enables dispatch and other users to disable/enable a radio if it is stolen, lost, or used maliciously.
ANALOG AND DIGITAL OPERATION
The PD402i operates in analog or digital mode. Allows switching between the two modes for communication with analog radios. Enables a simple and cost-effective migration path from analog to digital.
LONG-LIFE BATTERY
Powerful 2000mAh Lithium Ion batteries deliver up to 12 hours of operation in digital mode and 10 in analog mode
EMERGENCY CALLING
Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.
VOX
Voice activated communications (VOX) activates the microphone by speaking to enable hands-free operation.
SYSTEMS AND NETWORK FEATURES
The PD402i can be deployed on DMR Tier II systems. Roaming allows radios to seamlessly move between connected repeaters with non-stop voice transmission. Pseudo Trunk is a virtual trunking feature that automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency.
PD402i – Standard Accessories

AN0435H13
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo

AN0153H08
VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo

BP1503
Lithium polymer (1500mAh)

PS1014
Power adapter (Micro USB) for PD3 series enables hassle free charging via PC or laptop

CH10A07
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries

BC08
Plastic belt clip with a spring and metal bracket

RO03
Nylon Wrist Strap
PD402i – Optional Accessories

AN0435H13
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo

AN0435W09
UHF Whip Antenna, SMA connector, 400-470MHz, 16cm

AN0460W19
UHF Long and fine antenna SMA connector 440-470MHz

AN0495W04
UHF Whip Antenna, SMA connector, 470-520MHz, 16cm

AN0141H07
VHF Stubby Antenna, SMA connector,136-147MHz, GPS 1575MHz, 12cm, with Hytera logo

AN0153H08
VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo

AN0167H07
VHF Stubby Antenna, SMA connector,160-174MHz, GPS 1575MHz, 12cm, with Hytera logo

AN0160H13
VHF Antenna, SMA connector, 146-174MHz, 15cm, no logo

AN0141H06
VHF Antenna, SMA connector, 136-147MHz, 17cm, with Hytera logo

AN0153H07
VHF Stout Long Antenna, SMA connector, 147-160MHz, 17cm, with Hytera logo

AN0167H06
VHF Stout Long Antenna, SMA connector, 160-174MHz, 17cm, with Hytera logo

AN0155H08
VHF Stout Long Antenna, SMA connector, 136-174MHz, GPS 1575MHz, 20cm, with Hytera

BL2010
Li-ion battery with 20 hours operating time (2000mAh)

CHV09
In the vehicle charging solution convenient for portable radio batteries.

MCA08
Six-unit charger has the capacity to charge six batteries or portable radios

POA59
Charging unit provided for installation in MCA08 and MCA10 chargersr

BRK20
Enables secure installation of the multi-charger onto the wall for convenience and easy

NCN011
Nylon carrying case with half-open design and back-lock belt loop for easy installation

PCN006
Waterproof Bag

PC76
Data Programming Cable (USB Port)
Technical Specifications
General
| Frequency Range | UHF 400-470MHz VHF 136-174MHz |
| Channel Capacity | 256 (16 zones with 16 channels per zone) |
| Zone Capacity | 16 Zones with 16 Channels per Zone |
| Channel Spacing | 25/12.5KHz |
| Operational Voltage | 7.4W |
| Battery | 1500mAh (Li-Ion) Standard, 2000mAh Optional |
| Battery Life (5/5/90) | 1500mAh: 16 hours Digital, 12 hours Analog 2000mAh: 22 hours Digital, 16 hours Analog |
| Weight | 9.5oz (270g) |
| Dimensions (H x W x D) | 4 13/32” x 2 1/8” x 1 3/32” (112 x 55 x 28mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
Receiver
| Digital Sensitivity | 0.22μV / BER 5% |
| Analog Sensitivity | 0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz |
| Intermodulation | TIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz |
| Spurious Response Rejection | TIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz |
| Hum and Noise | 40dB @ 12.5kHz, 43db @ 20kHz, 45dB @ 25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
Transmitter
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W, UHF High Power: 4W UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36 dBm 1 GHz |
| Modulation Limiting | ±5.0kHz @ 25kHz, ±2.5kHz @ 12.5kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE++ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Enviromental
| Operating Temperature | -22oF to +140oF (-30oC to +60oC) |
| Storage Temperature | -40oF to +185oF (-40oC to +85oC) |
| ESD | IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP55 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
Ordering Information
| PD402i-V1 | VHF 136-174MHz, 1-5W Power |
| PD402i-U1 | UHF 400-470MHz, 1-4W Power |
